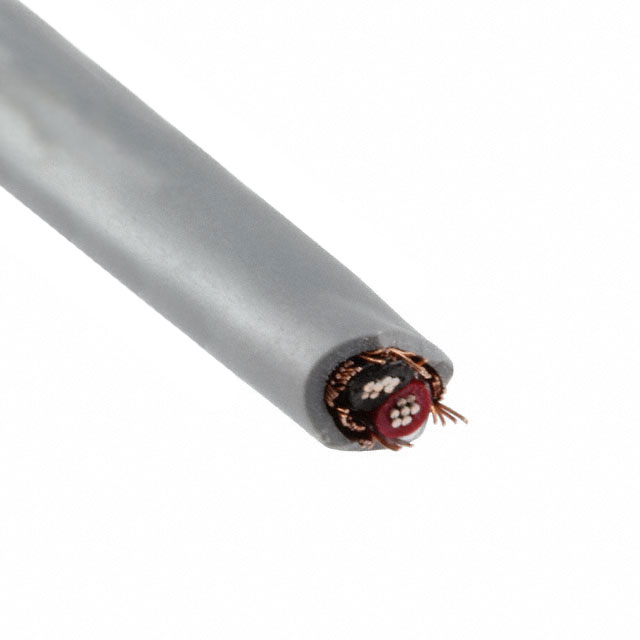

1741C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 2COND 20AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Cable Type | Wire Gauge | Usage | Conductor Insulation | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket Color | Jacket (Insulation) Material | Conductor Material | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | 75 % | Multi-Conductor | 20 AWG | Communication Control | Poly-Vinyl Chloride (PVC) | Braid | 0.205 in | 5.21 mm | 304.8 m | 1000 ft | Slate | Poly-Vinyl Chloride (PVC) | Copper Tinned | 2 | 80 °C | -20 ░C | 0.02 " | 0.508 mm | 300 VDC | 28 AWG | 7 | ||
 ALPHA WIRE | Copper Bare | 75 % | Multi-Conductor | 20 AWG | Communication Control | Poly-Vinyl Chloride (PVC) | Braid | 0.205 in | 5.21 mm | Slate | Poly-Vinyl Chloride (PVC) | Copper Tinned | 2 | 80 °C | -20 ░C | 0.02 " | 0.508 mm | 300 VDC | 28 AWG | 7 | 100 ft | 30.5 m |
