725-051 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 51POS 0.100

Part	Material - Insulation	Termination Rows	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Color	Read Out	Number of Positions/Bay/Row [custom]	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch	Pitch	Contact Material	Card Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Finish
EDAC Inc. 725-051-545-101	Polyester Thermoplastic	1	51	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	51	Cantilever	1	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Female	Gold
EDAC Inc. 725-051-540-101	Polyester Thermoplastic	1	51	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	51	Cantilever	1	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Female	Gold

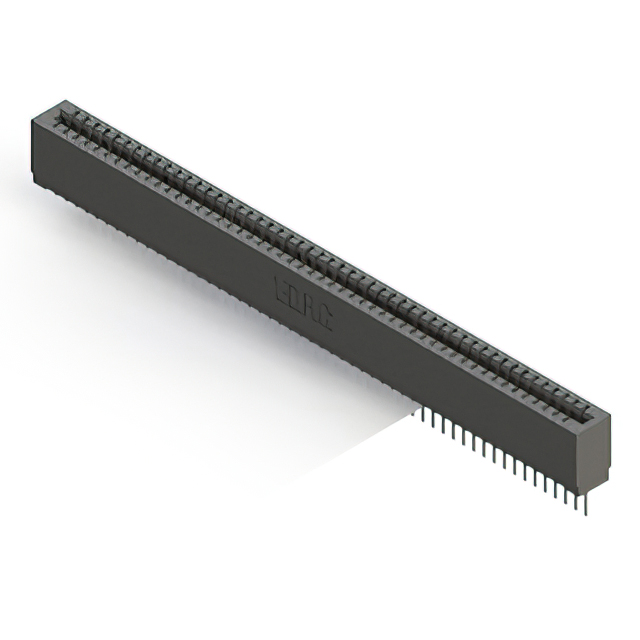

EDAC Inc. 725-051-522-101	Polyester Thermoplastic	1	51	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	51	Cantilever	1	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	Press-Fit	30 Áin	0.76 Ám	Female	Gold
EDAC Inc. 725-051-520-101	Polyester Thermoplastic	1	51	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	51	Cantilever	1	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	Press-Fit	30 Áin	0.76 Ám	Female	Gold
EDAC Inc. 725-051-541-101	Polyester Thermoplastic	1	51	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	51	Cantilever	1	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Female	Gold
