887-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Termination	Gender	Read Out	Card Type	Number of Positions/Bay/Row	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Type	Number of Rows [custom]	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Color	Features

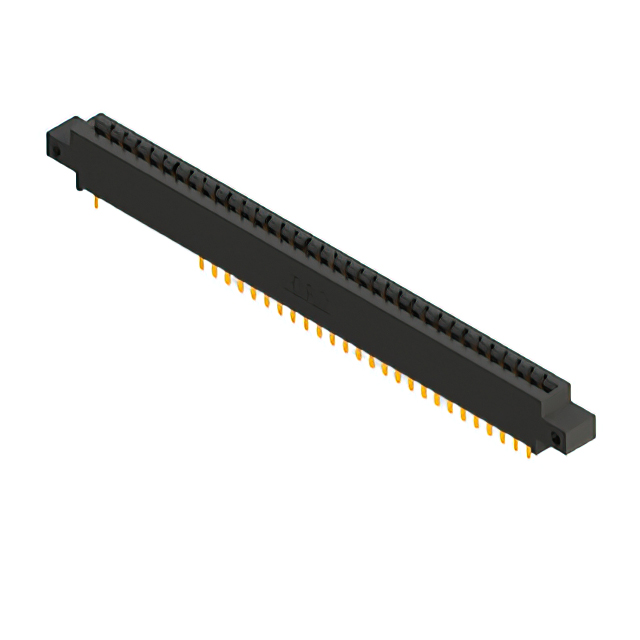

EDAC Inc. 887-068-544-812	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black
EDAC Inc. 887-068-542-804	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions		0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black
EDAC Inc. 887-068-542-203	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black
EDAC Inc. 887-068-541-202	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black
EDAC Inc. 887-068-521-807	2	Polyphenylene Sulfide (PPS)	Solder	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions	M3 Threaded Insert Top Mount Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black

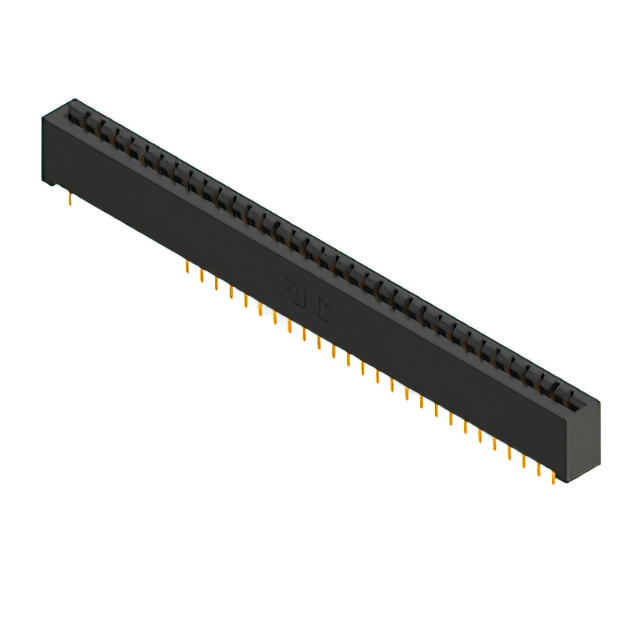

EDAC Inc. 887-068-540-201	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions				0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black
EDAC Inc. 887-068-555-208	2	Polyphenylene Sulfide (PPS)	Solder	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions	4-40 Flush Mount Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	125 °C	-40 C	Gold	Black	Card Extender
EDAC Inc. 887-068-521-203	2	Polyphenylene Sulfide (PPS)	Solder	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black
EDAC Inc. 887-068-542-802	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions		0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black
EDAC Inc. 887-068-520-807	2	Polyphenylene Sulfide (PPS)	Solder	Female	Dual	Non Specified - Dual Edge	34	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	Cantilever	2	68 positions	M3 Threaded Insert Top Mount Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Gold	Black
