WTSC Series

Wireless Charging Coils Doublecoil Wireless Charging Coil

Catalog

Wireless Charging Coils Doublecoil Wireless Charging Coil

Part	Type	DC Resistance (DCR) [Max]	Inductance	Current Rating (Amps)	Tolerance	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Function	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)
Signal Transformer WTM-7R3K-S7	2 Coil 1 Layer	50 mOhm	7.3 µH	7 A	10 %	0.16 in	55 mm	100 mm	3.94 in	4 mm	2.17 "	Transmitter	85 °C	-20 ░C

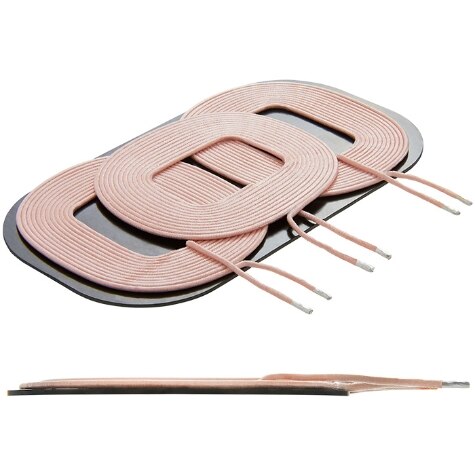

Signal Transformer WTM-12R5K-A6	1 Layer 3 Coil	65 mOhm	11.5 µH 12.5 µH	7 A	10 %	0.16 in	55 mm	100 mm	3.94 in	4 mm	2.17 "	Transmitter	85 °C	-20 ░C	10 A

Wireless Charging Coils Doublecoil Wireless Charging Coil
