ASMT-AR30 Series

Catalog

MS AV,3W RED

Part	Viewing Angle	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Mounting Type	Supplier Device Package	Temperature - Test	Package / Case	Wavelength	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Color	Current - Max [Max]	Current - Test	Thermal Resistance of Package	Luminous Flux @ Current/Temperature	Size / Dimension [diameter]	Size / Dimension [diameter]	Wavelength [Min]	Wavelength [Max]

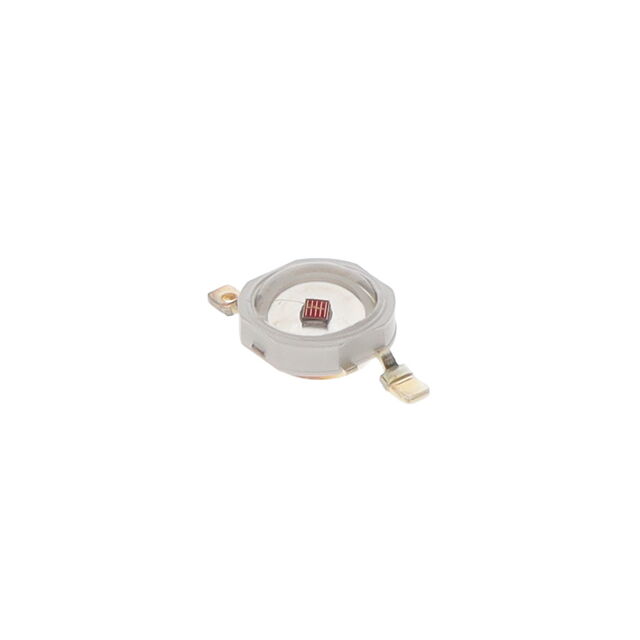

Broadcom Limited ASMT-AR30-AST00	140 °	52 lm	87 lm	Surface Mount	2-SMD	25 °C	2-SMD Gull Wing	625 nm	7.4 mm	0.291 in	0.291 in	7.4 mm	82 lm/W	2.1 V	4.2 mm	0.165 "	Red	700 mA	350 mA
Broadcom Limited ASMT-AR30-ARS00	140 °			Surface Mount	2-SMD	25 °C	2-SMD Gull Wing Exposed Pad	628 nm					95 lm/W	2.1 V	4.2 mm	0.165 "	Red	700 mA	350 mA	10 °C/W	70 lm	0.315 in	8 mm	620 nm	635 nm
