RA901 Series

Catalog

SWITCH ROCKER SPST 16A 125V

Part	Electrical Life	Color - Actuator/Cap	Approval Agency	Operating Temperature [Max]	Voltage Rating - AC	Actuator Marking	Termination Style	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Actuator Type	Current Rating (Amps)	Circuit

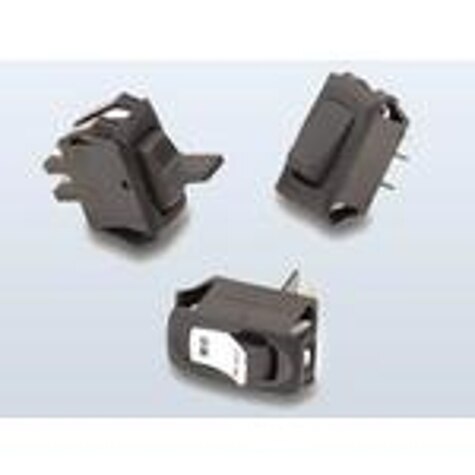

Carling Technologies RA901-VB-B-F-V	100000 Cycles	Black Red	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	85 °C	125 V	ON OFF	Quick Connect - 0.250" (6.3mm)	On-Off	13.97 mm	28.58 mm	Panel Mount Snap-In	Concave (Curved)	16 A	SPST
Carling Technologies RA901-VB-B-8-G	100000 Cycles	Black	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	85 °C	125 V	O I	Quick Connect - 0.250" (6.3mm)	On-Off	13.97 mm	28.58 mm	Panel Mount Snap-In	Concave (Curved)	16 A	SPST
Carling Technologies RA901-RB-1-0-N	100000 Cycles	Black	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	85 °C	125 V	No Marking	Quick Connect - 0.250" (6.3mm)	On-Off	13.97 mm	28.58 mm	Panel Mount Snap-In	Concave (Curved)	16 A	SPST
Carling Technologies RA901-VB-B-E-W	100000 Cycles	Black White	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	85 °C	125 V	O -	Quick Connect - 0.250" (6.3mm)	On-Off	13.97 mm	28.58 mm	Panel Mount Snap-In	Concave (Curved)	16 A	SPST
Carling Technologies RA901-RW-W-0-N	100000 Cycles	White	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	85 °C	125 V	No Marking	Quick Connect - 0.250" (6.3mm)	On-Off	13.97 mm	28.58 mm	Panel Mount Snap-In	Concave (Curved)	16 A	SPST
Carling Technologies RA901-VB-B-1-W	100000 Cycles	Black White	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	85 °C	125 V	OFF ON Vertical	Quick Connect - 0.250" (6.3mm)	On-Off	13.97 mm	28.58 mm	Panel Mount Snap-In	Concave (Curved)	16 A	SPST
Carling Technologies RA901-PB-B-0-N	100000 Cycles	Black	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	85 °C	125 V	No Marking	Quick Connect - 0.250" (6.3mm)	On-Off	13.97 mm	28.58 mm	Panel Mount Snap-In	Paddle	16 A	SPST
