SLW4 Series

Catalog

CONN FFC FPC BOTTOM 4POS 1MM R/A

Part	Mating Cycles	Actuator Color	Housing Color	Features	Locking Feature	Mounting Type	Termination	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Actuator Material	Contact Finish	Housing Material	Cable End Type	Contact Material	Flat Flex Type	Pitch	Pitch	Number of Positions	Connector/Contact Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]

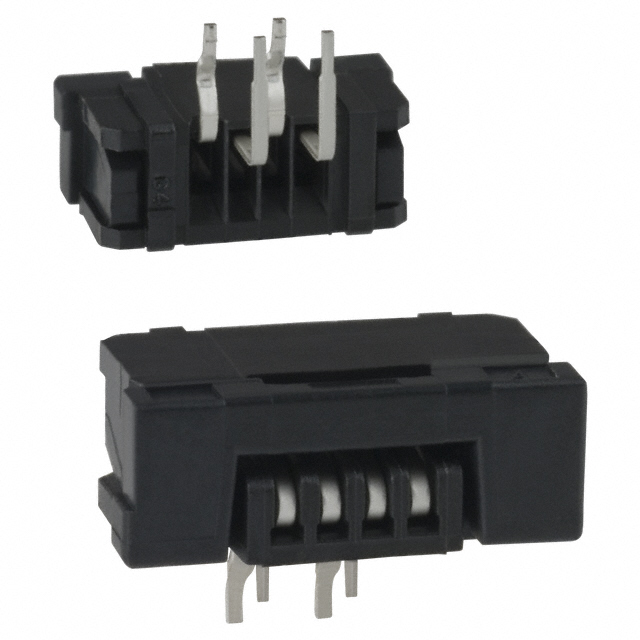

Amphenol ICC (FCI) SLW4R-1C7LF	20	Black	Black	Solder Retention Zero Insertion Force (ZIF)	Flip Lock	Right Angle Through Hole	Solder	UL94 V-0	0.157 in	4 mm	0.3 mm	Glass Filled Nylon Polyamide (PA)	Tin	Glass Filled Nylon Polyamide (PA)	Notched Tabbed	Phosphor Bronze	FFC FPC	1 mm	0.039 in	4	Contacts Bottom	100 V	-55 C	85 °C
