203LS Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

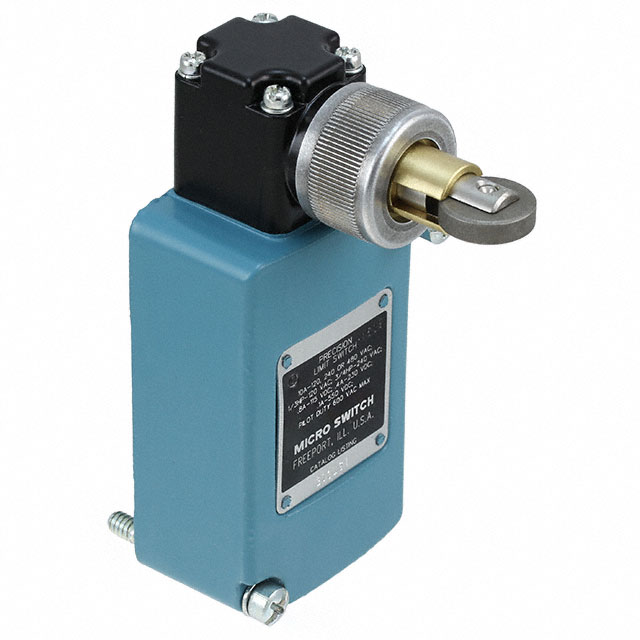

LIMIT SWITCH, SIDE ROLLER PLUNGER, SPDT, 10 A, 480 V, 40.03 N, LS SERIES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Operating Force | Switch Function | Overtravel [custom] | Overtravel [custom] | Operating Position | Operating Position | Mounting Type | Termination Style | Voltage Rating - AC | Release Force | Actuator Type | Ingress Protection | Pretravel | Pretravel | Current Rating (Amps) | Differential Travel | Differential Travel | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 71 °C | -29 °C | 115 V | 4082 gf | On-Mom | 5.6 mm | 0.219 " | 2.13 in | 54.1 mm | Chassis Mount | Plug In | 120 V | 907 gf | Side Roller Plunger | IP67 - Dust Tight Waterproof | 0.11 in | 2.8 mm | 10 A 800 mA | 1 mm | 0.04 in | SPDT (DB/DM) |
