TMX320 Series

Catalog

DSP FIXED-POINT/FLOATING-POINT 64BIT 1GHZ 8000MIPS 841-PIN FCBGA

Part	Non-Volatile Memory	Non-Volatile Memory	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - I/O	Interface	On-Chip RAM	Supplier Device Package	Package / Case	Mounting Type	Voltage - Core	Type	Program Memory Type	Connectivity	Core Processor	Data Converters [custom]	Data Converters [custom]	Speed	Core Size	Peripherals	RAM Size	Number of I/O	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Clock Rate	Voltage - Core	Voltage - Core [custom]	Data Converters	Program Memory Size	Core Size [custom]	RAM Size

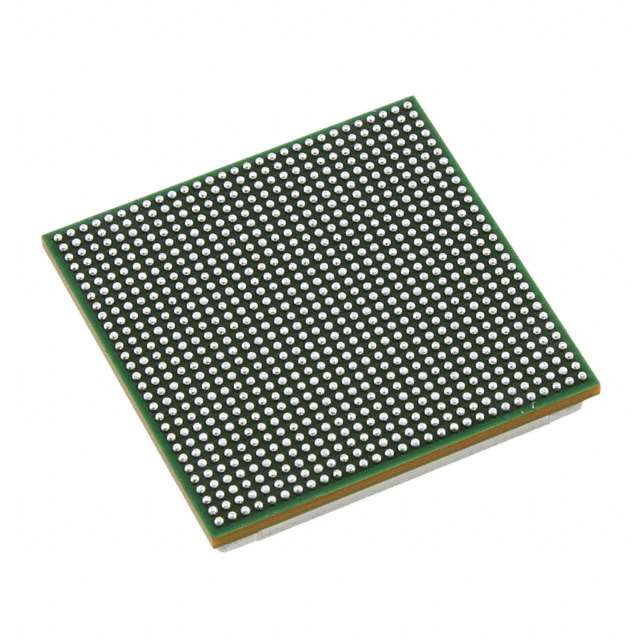

Texas Instruments TMX320C6678CYP	ROM	128 kB	85 °C	0 °C	1 V 1.5 V 1.8 V	10/100/1000 Ethernet EBI/EMI I2C PCIe SPI TSIP UART	8.5 MB	841-FCBGA (24x24)	841-BFBGA FCBGA	Surface Mount	Variable	Fixed/Floating Point
Texas Instruments TMX320F2808GGMA			85 °C	-40 °C				100-BGA MICROSTAR (10x10)	100-LFBGA	Surface Mount			FLASH	CANbus I2C SCI SPI UART/USART	C28x	16	12 b	100 MHz	32-Bit Single-Core	POR PWM WDT	18K x 16	35	Internal	1.89 V	1.71 V
Texas Instruments TMX320C6748ZCE	External		90 °C	0 °C	1.8 V 3.3 V	Ethernet Host Interface I2C McASP McBSP MMC SPI UART USB	448 kB	361-NFBGA (13x13)	361-LFBGA	Surface Mount		Fixed/Floating Point														300 MHz	1.2 V

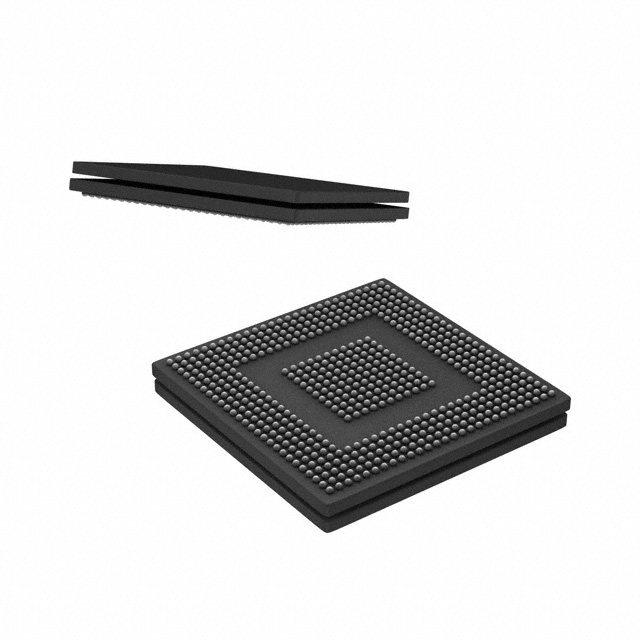

Texas Instruments TMX320C6474ZUN	ROM	64 kB	100 °C	0 °C	1.1 V 1.8 V	Ethernet MAC I2C McBSP	3.168 MB	561-FCBGA (23x23)	561-BFBGA FCBGA Exposed Pad	Surface Mount		Fixed Point																1 V
Texas Instruments TMX320F28075PTPT			105 °C	-40 °C				176-HLQFP (24x24)	176-LQFP Exposed Pad	Surface Mount			FLASH	CANbus EBI/EMI I2C McBSP SCI SPI UART/USART USB	C28x			120 MHz	32-Bit Single-Core	DMA POR PWM WDT		97	External	3.47 V	1.14 V				A/D 17x12b D/A 3x12b	512 KB
Texas Instruments TMX320C6747DZKBT3R	External		125 ¯C	-40 °C	1.8 V 3.3 V	Ethernet MAC Host Interface I2C McASP SPI UART USB	448 kB	256-BGA (17x17)	256-BGA	Surface Mount		Fixed/Floating Point														375 MHz	1.2 V
Texas Instruments TMX320F28027PTA			85 °C	-40 °C				48-LQFP (7x7)	48-LQFP	Surface Mount			FLASH	I2C SCI SPI UART/USART	C28x			60 MHz	32-Bit Single-Core		6K x 16	22	Internal	1.995 V	1.71 V				A/D 13x12b	64 KB
Texas Instruments TMX320F2808PZA			85 °C	-40 °C				100-LQFP (14x14)	100-LQFP	Surface Mount			FLASH	CANbus I2C SCI SPI UART/USART	C28x	16	12 b	100 MHz	32-Bit Single-Core	POR PWM WDT	18K x 16	35	Internal	1.89 V	1.71 V
Texas Instruments TMX320F28377DPTPT			105 °C	-40 °C				176-HLQFP (24x24)	176-LQFP Exposed Pad	Surface Mount			FLASH	CANbus EBI/EMI I2C McBSP SCI SPI UART/USART uPP USB	C28x			200 MHz		POR PWM WDT		97	Internal	3.47 V	1.14 V				A/D 20x12b A/D 9x16b D/A 3x12b	1 MB	32-Bit Dual-Core	102 K
Texas Instruments TMX320VC5472GHK
