4832 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

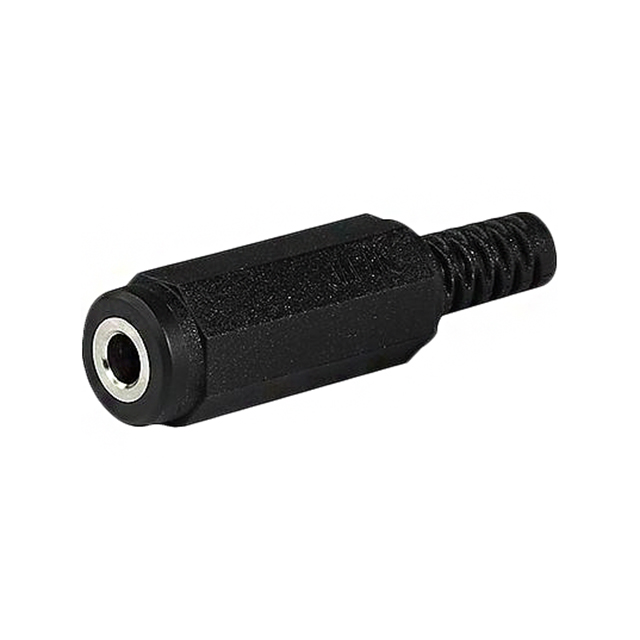

PHONE CONNECTORS AUDIO LINE SOCKET 3.5MM 2P
| Part | Mating Length/Depth | Mating Length/Depth | Contact Material - Plating | Cable Opening | Cable Opening | Body Color | Current Rating (Amps) | Contact Material | Housing Material | Voltage - Rated | Shielding | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Signal Lines | Internal Switch(s) | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Actual Diameter [diameter] | Actual Diameter [diameter] | Mounting Type | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 14 mm | 0.551 in | Gold | 0.157 in | 4 mm | Black | 0.5 A | Brass | Plastic | 30 VAC | Unshielded | 2 | 2 | Mono | Phone Jack | -20 ░C | 70 °C | Solder | 3.5 mm | 0.138 in | Free Hanging (In-Line) | 0.125 in | 3.5 mm | 0.141 in | Female |
