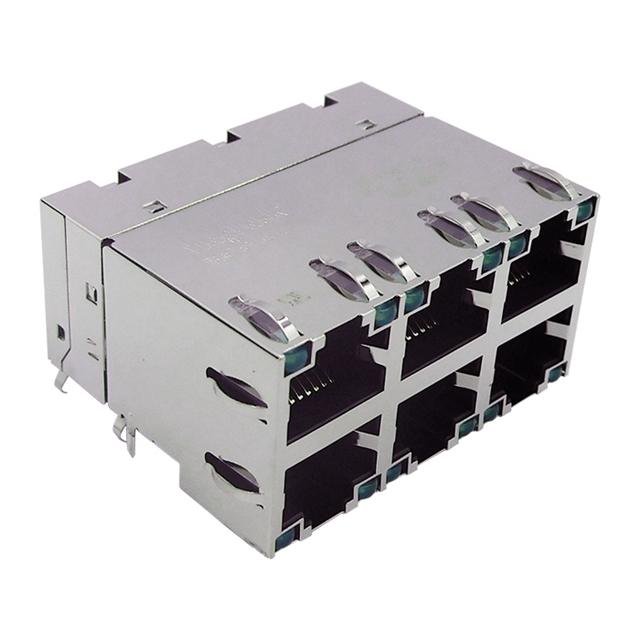

C850-2C3R Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
CONN JACK 6PORT PCB
| Part | Height Above Board [z] | Height Above Board [z] | Number of Ports [custom] | LED Color | Number of Rows [custom] | Tab Direction | Mounting Type | Number of Cores per Jack | Contact Material | Connector Type | Features | Applications | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Orientation | Contact Finish | Shield Material | Housing Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 19.94 mm | 0.785 in | 6 | Green Yellow | 2 | Up and Down | Through Hole | 8 | Copper Alloy | RJ45 | Board Guide | 10/100/1000 Base-T AutoMDIX | Solder | 70 °C | 0 °C | EMI Finger Shielded | 90 ° | Gold | ||||
Bel Fuse Inc. | 19.94 mm | 0.785 in | 6 | Green Yellow | 2 | Up and Down | Through Hole | 8 | Copper Alloy | RJ45 | Board Guide | 10/100/1000 Base-T AutoMDIX | Solder | 70 °C | 0 °C | EMI Finger Shielded | 90 ° | Gold | Copper Alloy | Polybutylene Terephthalate (PBT) | 30 Áin | 0.76 Ám |
