696018 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

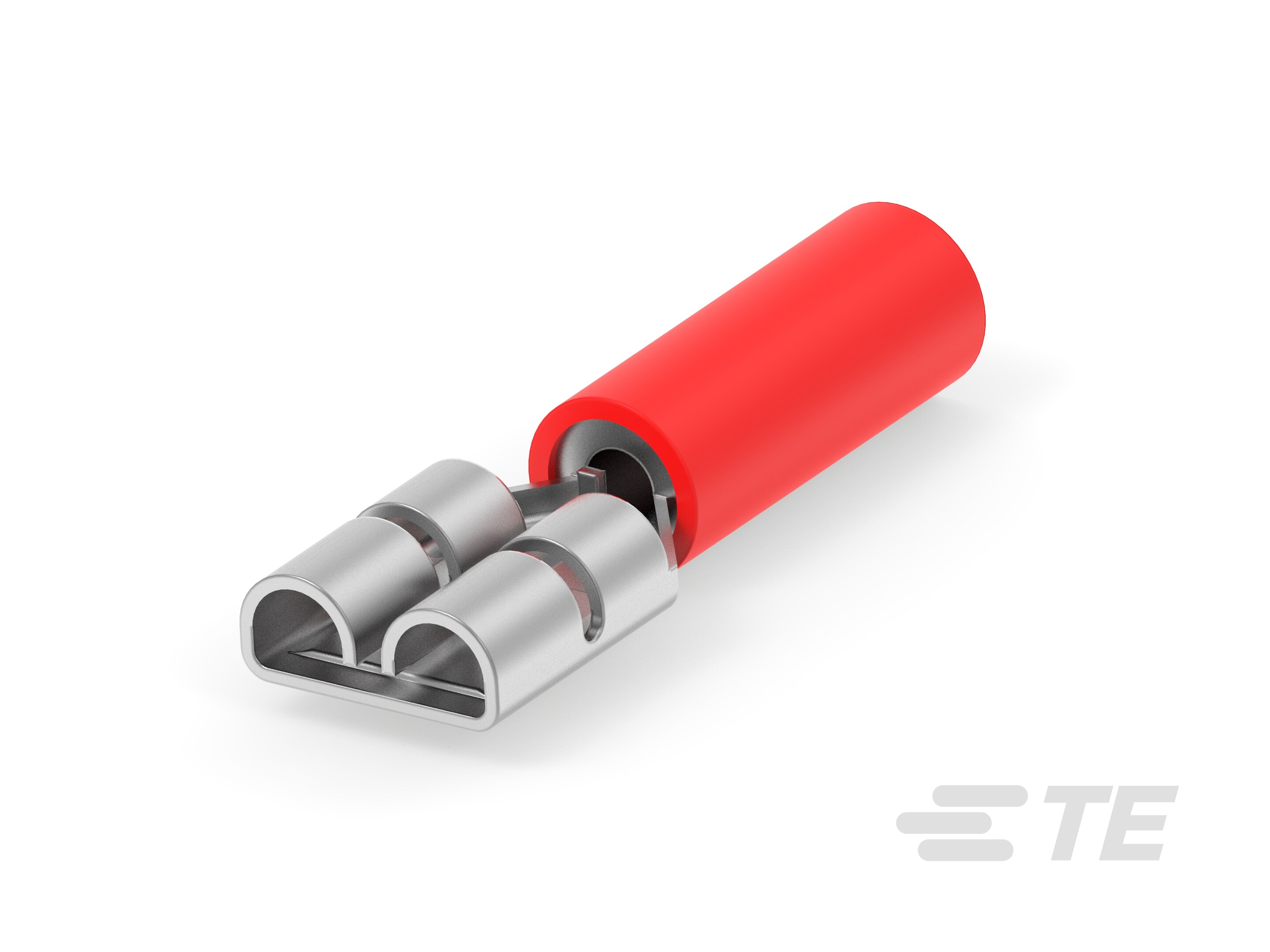

RCPT,PIDG FASTON 22-18 205,LIF
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Contact Finish | Mounting Type | Tab Length | Tab Length | Tab Thickness | Tab Thickness | Gender | Tab Width | Tab Width | Color | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.43 mm | 0.135 " | Standard | 20.32 mm | 0.8 " | Brass | 22 AWG | 17.5 AWG | Non-Mating End Insulated | Tin | Free Hanging (In-Line) | 0.25 in | 6.35 mm | 0.02 in | 0.51 mm | Female | 5.21 mm | 0.205 in | Red | Crimp |
