120534 Series

Catalog

MEZZANINE CONNECTOR, HEADER, 1 MM, 2 ROWS, 64 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Part	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Pitch	Pitch	Number of Rows [custom]	Contact Finish

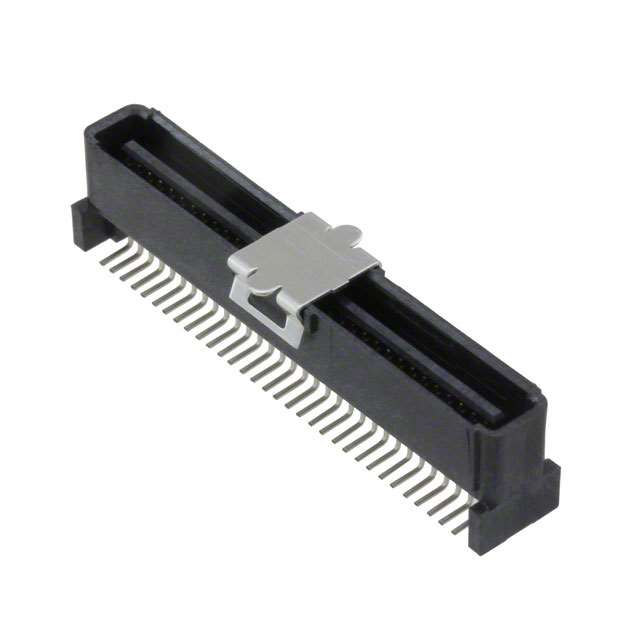

TE Connectivity AMP Connectors 1-120534-1	64	Surface Mount	0.329 in	8.35 mm	50 µin	1.27 µm	10 mm 12 mm 13 mm 15 mm	1 mm	0.039 in	2	Gold

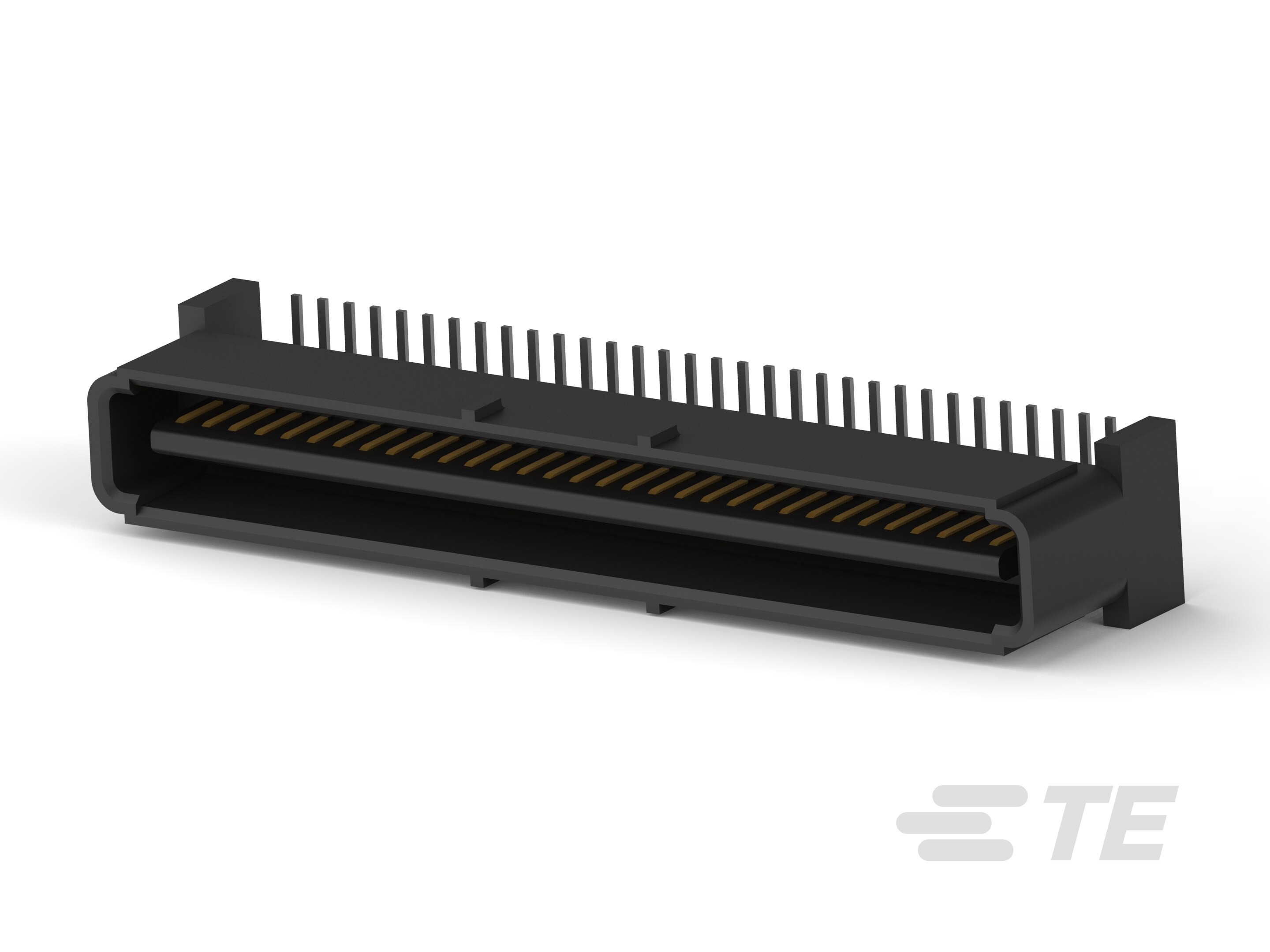

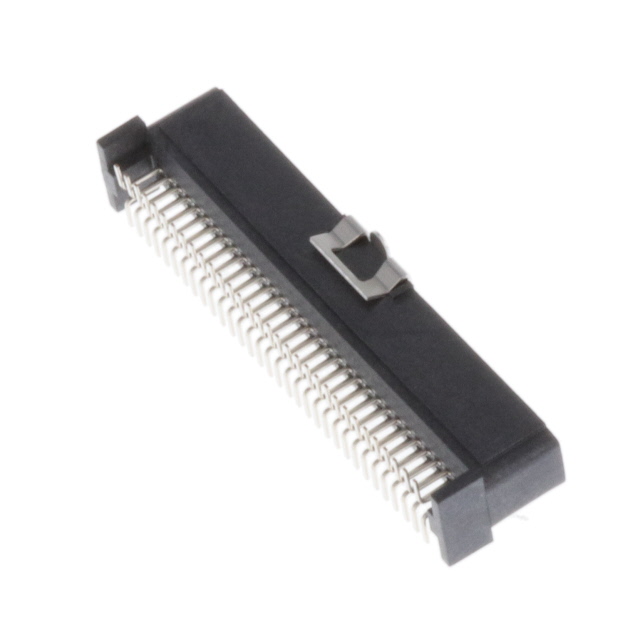

TE Connectivity AMP Connectors 120534-1	64	Surface Mount	0.329 in	8.35 mm	30 Áin	0.76 Ám	10 mm 12 mm 13 mm 15 mm	1 mm	0.039 in	2	Gold
