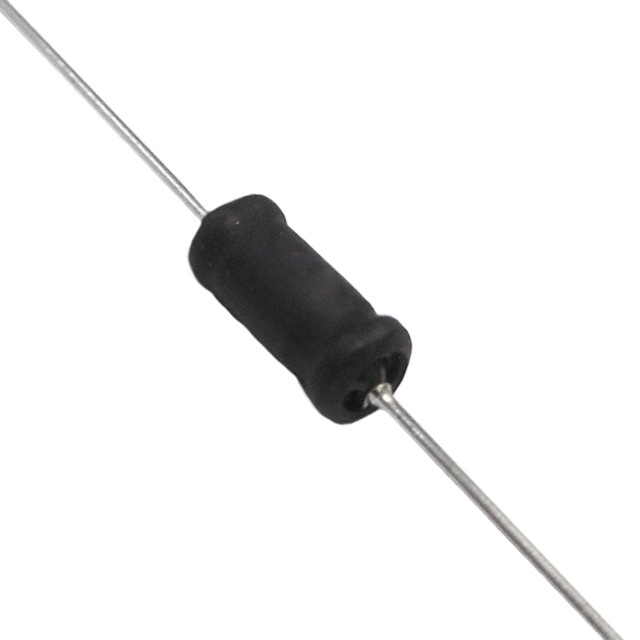

AIAP-02 Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - LEADED IND 68.00 UH 1.500 A 142.00 MOHM
| Part | Mounting Type | Package / Case | Inductance Frequency - Test | Current Rating (Amps) | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Type | DC Resistance (DCR) [Max] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Shielding | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | Through Hole | Axial | 1 kHz | 1.5 A | 68 µH | 85 °C | -40 C | Wirewound | 142 mOhm | 14 mm | 6.4 mm | 0.252 in | 0.551 in | Unshielded | 10 % |
Abracon LLC | Through Hole | Axial | 1 kHz | 3.6 A | 12 µH | 85 °C | -40 C | Wirewound | 37 mOhm | 14 mm | 6.4 mm | 0.252 in | 0.551 in | Unshielded | 10 % |
 Abracon LLC | Through Hole | Axial | 1 kHz | 950 mA | 180 µH | 85 °C | -40 C | Wirewound | 362 mOhm | 14 mm | 6.4 mm | 0.252 in | 0.551 in | Unshielded | 10 % |
