BVL062 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

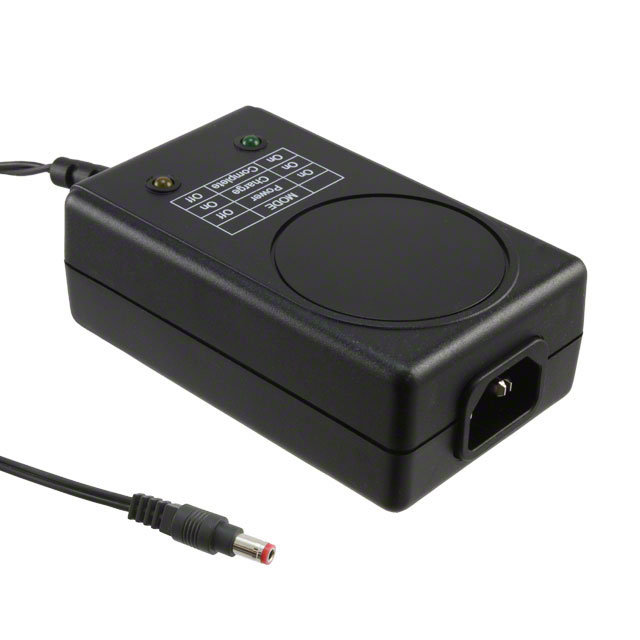

BATT CHARGER DESKTOP 6V 2A
| Part | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Battery Chemistry | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Battery Cell Size | Power - Max [Max] | Number of Cells | Termination Style [diameter] | Termination Style | Charge Current - Max [Max] | Voltage - Nominal | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | CE cUL TUV | 5 °C | 40 °C | 226.8 g | 4.21 in | 66 mm | 37 mm | 1.46 in | 2.6 in | 107 mm | Desktop | Lead Acid | 250 VAC | 100 VAC | Desktop | 6 V | 14.7 W | 1 | 2.5 mm 5.5 mm | Female | 2 A | 6 V | LED Indicator |
