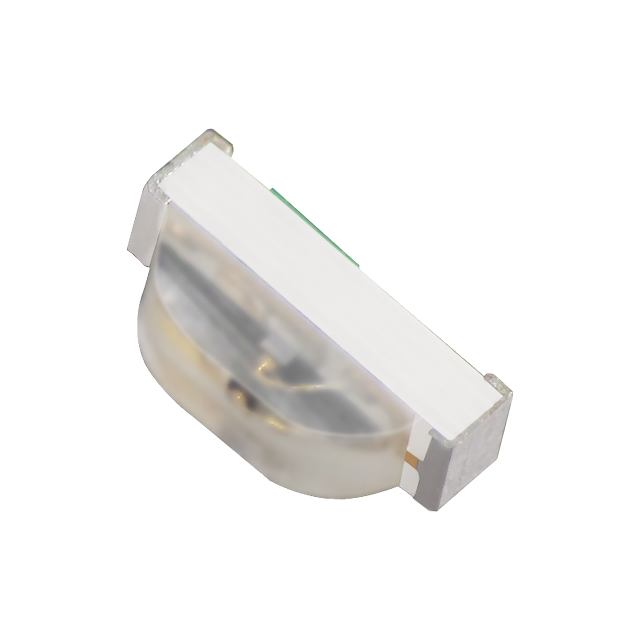

APA2107 Series

Catalog

LED GREEN CLEAR 2SMD R/A

Part	Color	Lens Transparency	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Color	Lens Size [y]	Lens Size [x]	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Configuration	Package / Case	Height (Max) [z]	Wavelength - Peak	Supplier Device Package	Wavelength - Dominant	Mounting Type	Height (Max) [z]
Kingbright APA2107ZGC/G	Green	Clear	650 mcd	3.2 V	20 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Independent	2-SMD No Lead	0.7 mm	520 nm	2-SMD	525 nm	Right Angle Surface Mount
Kingbright APA2107SYCK	Yellow	Clear	150 mcd	2 V	20 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Independent	2-SMD No Lead	0.7 mm	590 nm	2-SMD	590 nm	Right Angle Surface Mount
Kingbright APA2107SURCK	Red	Clear	220 mcd	1.95 V	20 mA	Colorless	0.6 mm	1.7 mm	140 °	1 mm	2.1 mm	Rectangle with Domed Top	Independent	2-SMD No Lead	0.7 mm	645 nm	2-SMD	630 nm	Right Angle Surface Mount
Kingbright APA2107LSECK/J4-PRV		Clear	40 mcd	1.8 V	2 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Standard	2-SMD No Lead		611 nm	2-SMD	605 nm	Right Angle Surface Mount	0.6 mm
Kingbright APA2107VBC/D	Blue	Clear	200 mcd	3.3 V	20 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Independent	2-SMD No Lead	0.7 mm	465 nm	2-SMD	470 nm	Right Angle Surface Mount
Kingbright APA2107LZGCK	Green	Clear	40 mcd	2.65 V	2 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Standard	2-SMD No Lead		515 nm	2-SMD	525 nm	Right Angle Surface Mount	0.6 mm
Kingbright APA2107SECK		Clear	250 mcd	2.1 V	20 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Independent	2-SMD No Lead	0.7 mm	610 nm	2-SMD	601 nm	Right Angle Surface Mount
Kingbright APA2107QBC/D	Blue	Clear	80 mcd	3.3 V	20 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Independent	2-SMD No Lead	0.7 mm	460 nm	2-SMD	465 nm	Right Angle Surface Mount
Kingbright APA2107SYCK/J3-PRV	Yellow	Clear	350 mcd	2 V	20 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Independent	2-SMD No Lead	0.7 mm	590 nm	2-SMD	590 nm	Right Angle Surface Mount
Kingbright APA2107LSECK/J3-PRV	Red	Clear	120 mcd	1.8 V	2 mA	Colorless	0.6 mm	1.7 mm	120 °	1 mm	2.1 mm	Rectangle with Domed Top	Independent	2-SMD No Lead	0.7 mm	640 nm	2-SMD	625 nm	Right Angle Surface Mount
