Power Inductors - SMD 1.0K UH 20%
Power Inductors - SMD 1.0K UH 20%
| Part | Package / Case | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | Mounting Type | Tolerance | Ratings | Current Rating (Amps) | Material - Core | Shielding | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

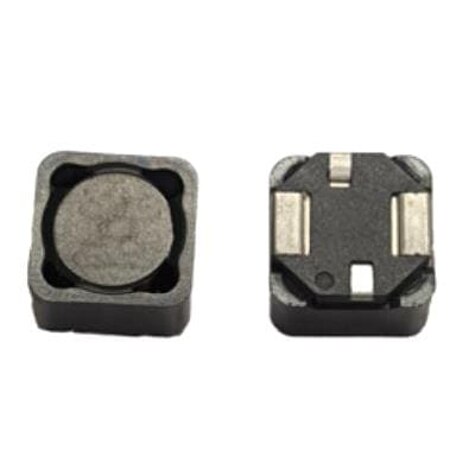

 Eaton - Electronics Division | Nonstandard | 100 kHz | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | 0.319 in | 8.1 mm | 2.1 Ohm | -40 C | 165 °C | 1 mH | Surface Mount | 20 % | AEC-Q200 | 598 mA | Ferrite | Shielded | 1.1 A |
