953371 Series

Catalog

16W MCP H RIGHT ANGLE HDR

Part	Shrouding	Connector Type	Voltage Rating	Contact Shape	Insulation Height [custom]	Insulation Height [custom]	Number of Rows [custom]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Termination	Style	Fastening Type	Contact Finish - Post	Mounting Type	Contact Material	Features	Number of Positions	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Insulation Material	Contact Type

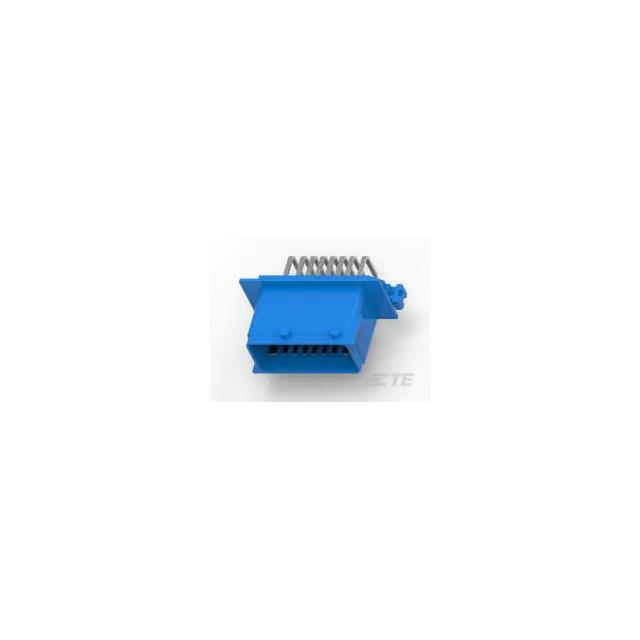

TE Connectivity AMP Connectors 953371-3	Shrouded - 4 Wall	Header	12 VDC	Rectangular	0.665 in	16.9 mm	2	Automotive	85 °C	-40 C	All	Solder	Board to Cable/Wire	Push-Pull	Tin	Right Angle Through Hole	Brass	Mounting Flange	16	UL94 HB	0.364 in	9.25 mm	3.53 mm	0.139 in	0.236 in	6 mm	Blue	Polybutylene Terephthalate (PBT) Glass Filled	Tab
TE Connectivity AMP Connectors 953371-3	Shrouded - 4 Wall	Header	12 VDC	Rectangular	0.665 in	16.9 mm	2		85 °C	-40 C	All	Solder	Board to Cable/Wire	Push-Pull	Tin	Right Angle Through Hole	Brass	Mounting Flange	16	UL94 HB	0.364 in	9.25 mm	3.53 mm	0.139 in	0.236 in	6 mm	Blue	Polybutylene Terephthalate (PBT) Glass Filled	Tab
