8433-0 Series

Catalog

CONN PIN RCPT .040-.060 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Socket Depth	Socket Depth	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material

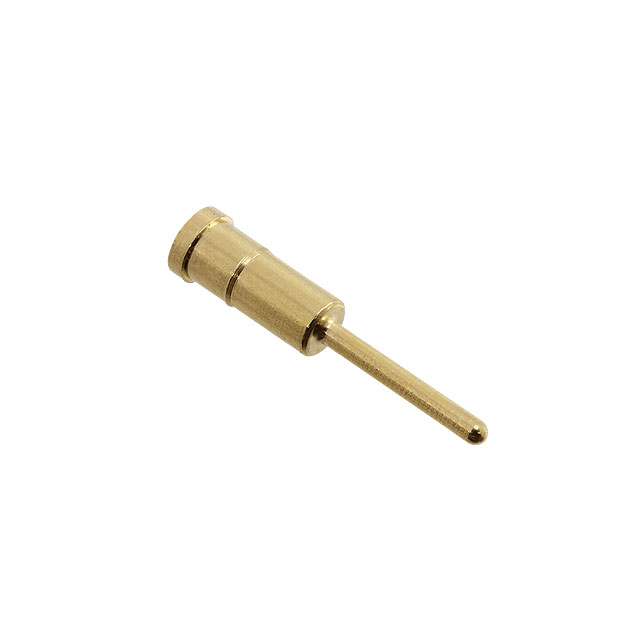

Mill-Max Manufacturing Corp. 8433-0-15-15-03-27-04-0	-55 C	125 °C	Press-Fit	30 Áin	0.76 Ám	0.06 in	1.52 mm	0.04 in	1.02 mm	0.6 in	15.24 mm	0.12 in	3.05 mm	Gold	5.21 mm	0.205 in	1.02 mm	0.04 "	1.98 mm	0.078 in	Standard Tail	2.69 mm	0.106 in	Beryllium Copper
Mill-Max Manufacturing Corp. 8433-0-15-80-03-14-04-0	-55 C	125 °C	Press-Fit	10 Áin	0.25 Ám	0.06 in	1.52 mm	0.04 in	1.02 mm	0.6 in	15.24 mm	0.12 in	3.05 mm	Gold	5.21 mm	0.205 in	1.02 mm	0.04 "	1.98 mm	0.078 in	Standard Tail	2.69 mm	0.106 in	Beryllium Copper
Mill-Max Manufacturing Corp. 8433-0-15-80-03-80-04-0	-55 C	125 °C	Press-Fit	200 Áin	5.08 Ám	0.06 in	1.52 mm	0.04 in	1.02 mm	0.6 in	15.24 mm	0.12 in	3.05 mm	Tin	5.21 mm	0.205 in	1.02 mm	0.04 "	1.98 mm	0.078 in	Standard Tail	2.69 mm	0.106 in	Beryllium Copper
