13-6 Series

Catalog

12-10 AWG VINYL INSULATED BUTTED SEAM RING TONGUE TERMINAL

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Features	Length - Overall [x]	Length - Overall [x]	Terminal Type	Mounting Type	Termination	Insulation	Contact Finish	Contact Material	Stud/Tab Size	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Min]	Wire Gauge [Max]	Color	Width - Outer Edges [x]
3M Electronic Specialty 13-6-P	6.35 mm	0.25 in	Vinyl	Butted Seam	26.16 mm	1.03 in	Circular	Free Hanging (In-Line)	Crimp	Insulated	Tin	Copper ETP	6 Stud	0.04 in	1.02 mm	9.65 mm	0.38 in	10 AWG	12 AWG	Yellow
3M Electronic Specialty 13-6S-W				Brazed Seam	17.27 mm	0.68 "	Circular	Free Hanging (In-Line)	Crimp	Non-Insulated	Tin	Copper	6 Stud	0.04 in	1.02 mm	7.11 mm		10 AWG	12 AWG		0.28 in

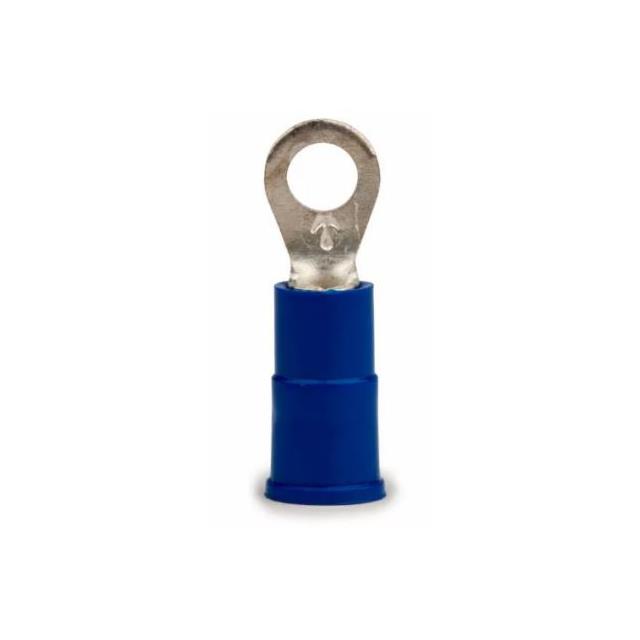

3M Electronic Specialty 13-6S				Butted Seam	17.27 mm	0.68 "	Circular	Free Hanging (In-Line)	Crimp	Non-Insulated	Tin	Copper ETP	6 Stud	0.04 in	1.02 mm	7.11 mm		10 AWG	12 AWG		0.28 in
3M Electronic Specialty 13-6-NB	6.35 mm	0.25 in	Nylon Polyamide (PA)	Butted Seam	26.16 mm	1.03 in	Circular	Free Hanging (In-Line)	Crimp	Insulated			6 Stud	0.04 in	1.02 mm	9.65 mm	0.38 in	10 AWG	12 AWG	Yellow
