THB0848 Series
Manufacturer: Delta Electronics
Beta
⌘K

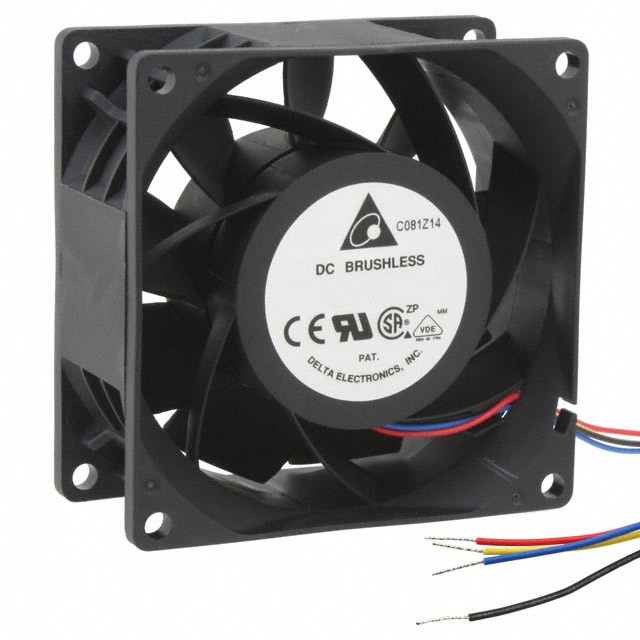

FAN AXIAL 80X38MM 48VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Voltage - Rated | Size / Dimension [z] | Size / Dimension [x] | Noise | Bearing Type | RPM | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Weight | Weight | Fan Type | Features | Termination | Width [y] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 36 VDC | 60 V | Plastic | 0.7 A | 70000 Hrs | Plastic | 48 VDC | 80 mm | 80 mm | 70 dB(A) | Ball | 15000 RPM | 4.543 in H2O | 1132 Pa | 70 °C | -10 °C | 33.6 W | 196.86 g | 0.434 lb | Tubeaxial | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4 Wire Leads | 38 mm | CE cURus TUV |
