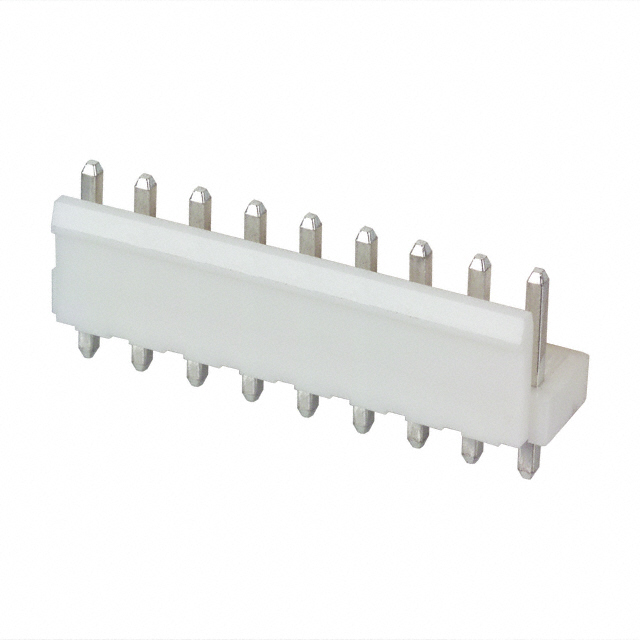

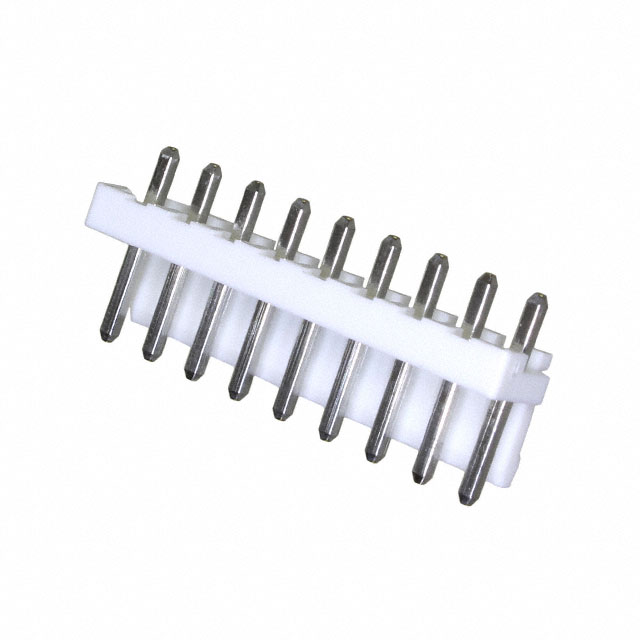

B9P-VH Series
Manufacturer: JST Sales America Inc.
Catalog
CONN HEADER VERT 9POS 3.96MM
| Part | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Mated Stacking Heights | Contact Length - Post | Contact Length - Post | Fastening Type | Contact Length - Mating | Contact Length - Mating | Termination | Voltage Rating | Insulation Material | Contact Finish - Post | Material Flammability Rating | Shrouding | Insulation Height | Insulation Height | Number of Positions | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current Rating (Amps) | Connector Type | Number of Rows | Contact Type | Style | Contact Material | Contact Shape | Insulation Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | All | 0.575 in | 14.6 mm | 16.5 mm | 0.146 in | 3.7 mm | Locking Ramp | 7.7 mm | 0.303 in | Solder | 250 VDC | Polyamide (PA66) Nylon 6/6 | Tin | UL94 V-0 | Shrouded - 1 Wall | 0.37 in | 9.4 mm | 9 | 0.156 in | 3.96 mm | -25 °C | 85 °C | Through Hole | 10 A | Header | 1 | Male Pin | Board to Cable/Wire | Brass | Square | Natural | |

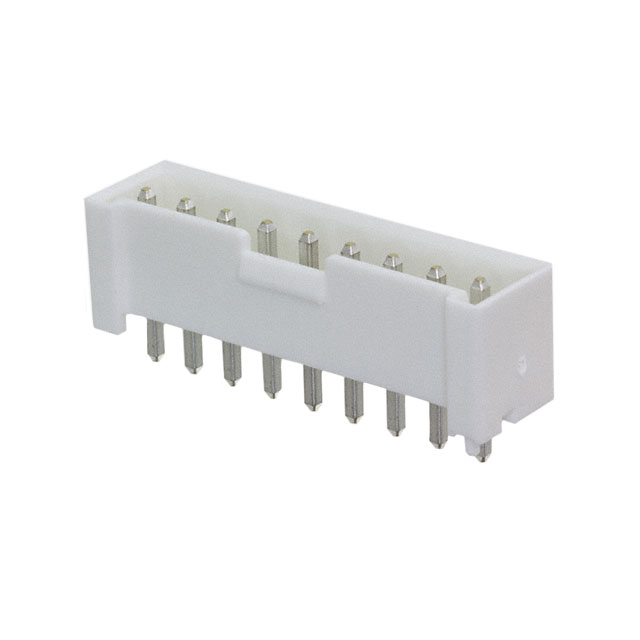

 JST Sales America Inc. | All | 0.146 in | 3.7 mm | Locking Ramp | Solder | 250 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Tin | UL94 V-0 | Shrouded - 4 Wall | 0.433 in | 11 mm | 9 | 0.156 in | 3.96 mm | -25 °C | 85 °C | Through Hole | 10 A | Header | 1 | Male Pin | Board to Cable/Wire | Copper Alloy | Square | Natural | Board Guide | |||||
 JST Sales America Inc. | All | 0.575 in | 14.6 mm | 0.146 in | 3.7 mm | Locking Ramp | 7.7 mm | 0.303 in | Solder | 250 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Tin | UL94 V-0 | Shrouded - 1 Wall | 0.37 in | 9.4 mm | 9 | 0.156 in | 3.96 mm | -25 °C | 85 °C | Through Hole | 10 A | Header | 1 | Male Pin | Board to Cable/Wire | Brass | Square | Natural |
