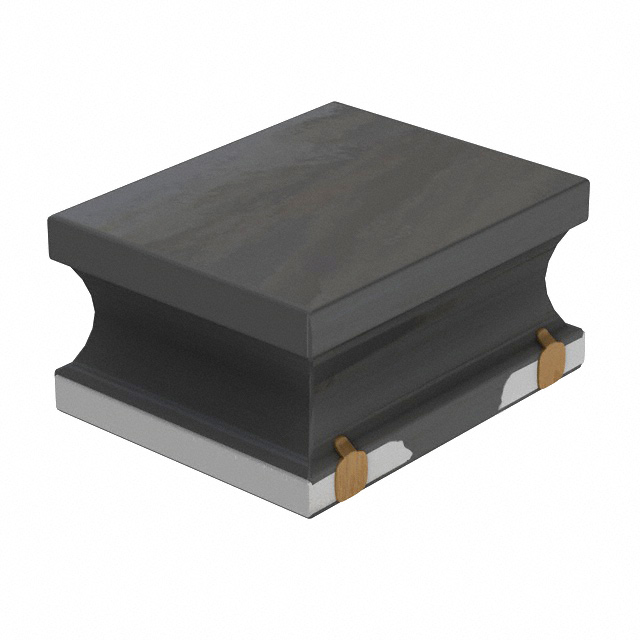

VLS-CX-1 Series

Catalog

POWER INDUCTORS - SMD 2MM X 1.6MM, -40 TO +105 DEGC, 1.62A, 1.5?H, 89MOHM

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Inductance Frequency - Test	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Inductance	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	DC Resistance (DCR) [Max]	Tolerance	Current - Saturation (Isat)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package
TDK Corporation VLS201612CX-1R5M-1	1.6 mm	0.079 in	0.063 "	2 mm	Shielded	1 MHz	2016	1.2 mm	0.047 "	Drum Core Wirewound	1.5 µH	1.9 A	Surface Mount	-40 C	105 ░C	Ferrite	89 mOhm	20 %	1.62 A	Nonstandard

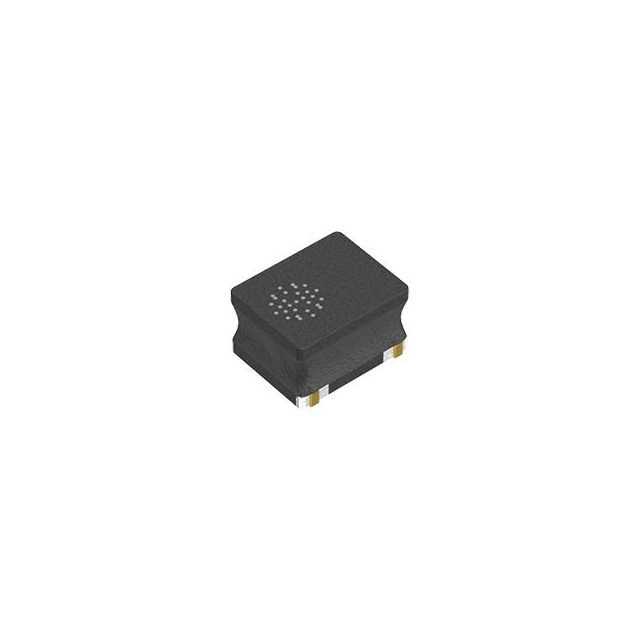

TDK Corporation VLS201612CX-R24M-1	1.6 mm	0.079 in	0.063 "	2 mm	Shielded	1 MHz	0806	1.2 mm	0.047 "	Drum Core Wirewound	240 nH	3.4 A	Surface Mount	-40 C	105 ░C	Ferrite	31 mOhm	20 %	3.42 A	0806 (2016 Metric)
TDK Corporation VLS3010CX-1R5M-1	3 mm	0.117 in	0.117 in	3 mm	Shielded					Drum Core Wirewound	1.5 µH		Surface Mount	-40 C	105 ░C	Ferrite		20 %		Nonstandard	0.039 in	1 mm
TDK Corporation VLS252012CX-220M-1	2 mm	0.098 in	0.079 in	2.5 mm	Shielded	1 MHz		1.2 mm	0.047 "	Drum Core Wirewound	22 µH	0.56 A	Surface Mount	-40 C	105 ░C	Ferrite	955 mOhm	20 %	540 mA	Nonstandard			2520
TDK Corporation VLS252010CX-1R0M-1	2 mm	0.098 in	0.079 in	2.5 mm	Shielded	1 MHz				Drum Core Wirewound	1 µH	2.29 A	Surface Mount	-40 C	105 ░C	Ferrite	65 mOhm	20 %	2.25 A	Nonstandard	0.039 in	1 mm	2520
TDK Corporation VLS201610CX-100M-1	1.6 mm	0.079 in	0.063 "	2 mm	Shielded	1 MHz	2016			Drum Core Wirewound	10 µH	0.71 A	Surface Mount	-40 C	105 ░C	Ferrite	732 mOhm	20 %	550 mA	Nonstandard	0.039 in	1 mm

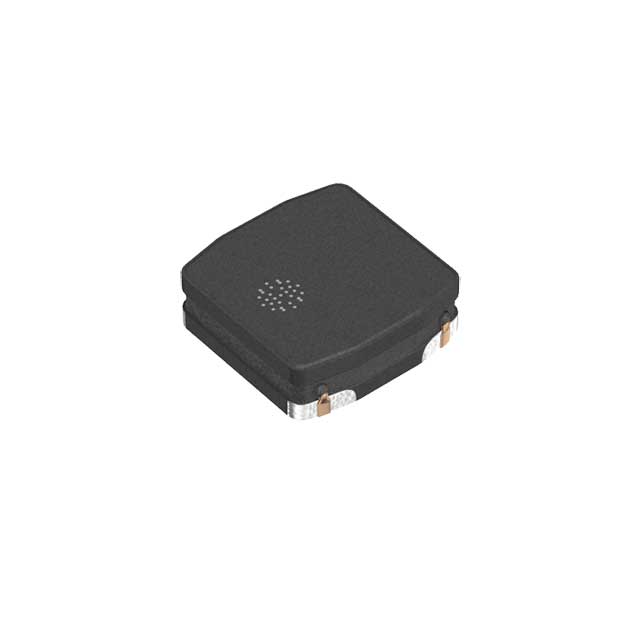

TDK Corporation VLS3010CX-1R0M-1	3 mm	0.117 in	0.117 in	3 mm	Shielded					Drum Core Wirewound	1 µH		Surface Mount	-40 C	105 ░C	Ferrite		20 %		Nonstandard	0.039 in	1 mm
TDK Corporation VLS252010CX-100M-1	2 mm	0.098 in	0.079 in	2.5 mm	Shielded	1 MHz				Drum Core Wirewound	10 µH	0.71 A	Surface Mount	-40 C	105 ░C	Ferrite	580 mOhm	20 %	660 mA	Nonstandard	0.039 in	1 mm	2520
