JMK212B Series

Catalog

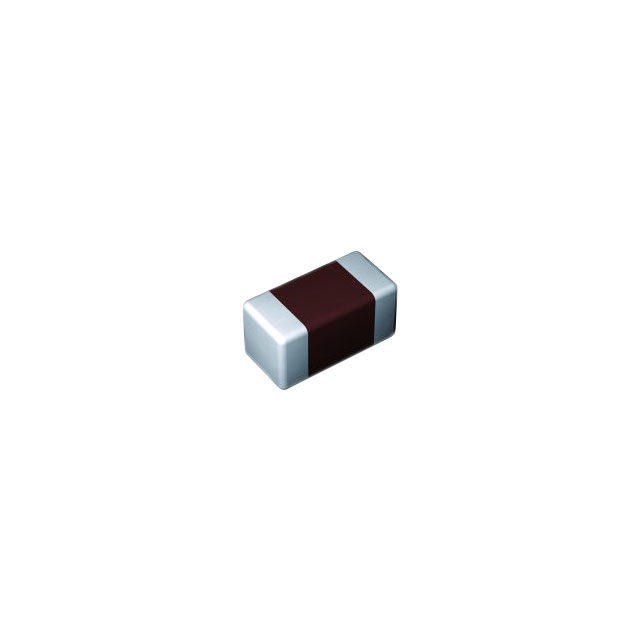

CAPACITOR,CERAMIC,2.2UF,6.3VDC,10-% TOL,10+% TOL,X5R-TC CODE,-15,15%-TC ROHS COMPLIANT: YES

Part	Voltage - Rated	Capacitance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Temperature Coefficient	Ratings
Taiyo Yuden JMK212BJ225KG-T	6.3 VDC	2.2 µF	SMPS Filtering	-55 C	85 °C	10 %	MLCC Surface Mount	0.053 in	1.35 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X5R
Taiyo Yuden JMK212BJ475MD-T	6.3 VDC	4.7 µF	SMPS Filtering	-55 C	85 °C	20 %	MLCC Surface Mount	0.037 in	0.95 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X5R
Taiyo Yuden JMK212BJ335MG-T	6.3 VDC	3.3 µF	SMPS Filtering	-55 C	85 °C	20 %	MLCC Surface Mount	0.053 in	1.35 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X5R
Taiyo Yuden JMK212B7475KGHT	6.3 VDC	4.7 µF	Automotive	-55 C	125 °C	10 %	MLCC Surface Mount	0.053 in	1.35 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X7R	AEC-Q200
Taiyo Yuden JMK212BJ475MG-T	6.3 VDC	4.7 µF	SMPS Filtering	-55 C	85 °C	20 %	MLCC Surface Mount	0.053 in	1.35 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X5R
Taiyo Yuden JMK212BBJ107MG-TE	6.3 VDC	100 µF	SMPS Filtering	-55 C	85 °C	20 %	MLCC Surface Mount	0.057 "	1.45 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X5R
Taiyo Yuden JMK212BJ106KG-L	6.3 VDC	10 µF	SMPS Filtering	-55 C	85 °C	10 %	MLCC Surface Mount	0.053 in	1.35 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X5R
Taiyo Yuden JMK212BJ106KG-T	6.3 VDC	10 µF	SMPS Filtering	-55 C	85 °C	10 %	MLCC Surface Mount	0.053 in	1.35 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X5R
Taiyo Yuden JMK212B7475MGHT	6.3 VDC	4.7 µF	Automotive	-55 C	125 °C	20 %	MLCC Surface Mount	0.053 in	1.35 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X7R	AEC-Q200
Taiyo Yuden JMK212BJ106MG-T	6.3 VDC	10 µF	SMPS Filtering	-55 C	85 °C	20 %	MLCC Surface Mount	0.053 in	1.35 mm	2 mm	1.25 mm	0.049 "	0.079 in	0805	X5R
