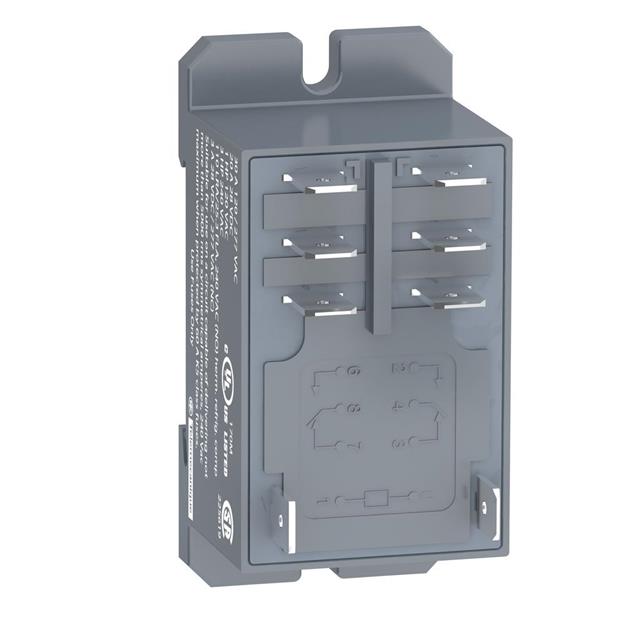

RPF2B Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
HARMONY, POWER RELAY, DIN RAIL/P
| Part | Coil Resistance | Coil Type | Load - Max Switching | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Release Time | Contact Rating (Current) | Termination Style | Must Release Voltage | Switching Voltage [Max] | Operate Time | Coil Current | Contact Form | Coil Voltage | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 350 Ohms | Non Latching | 700 W 6250 VA | Silver Tin Oxide (AgSnO) | 55 °C | -40 C | General Purpose | 25 ms | 25 A | Quick Connect - Multiple Sizes | 2.4 VDC | 28 VDC 250 VAC | 25 ms | 68.6 mA | DPDT (2 Form C) | 24 VDC | Chassis Mount | CE CSA GOST UL |
 SCHNEIDER ELECTRIC | 170 Ohms | Non Latching | 700 W 6250 VA | Silver Tin Oxide (AgSnO) | 55 °C | -40 C | General Purpose | 25 ms | 25 A | Quick Connect - Multiple Sizes | 3.6 VAC | 28 VDC 250 VAC | 25 ms | 141.2 mA | DPDT (2 Form C) | 24 VAC | Chassis Mount | CE CSA GOST UL |
SCHNEIDER ELECTRIC | 15.6 kOhms | Non Latching | 700 W 6250 VA | Silver Tin Oxide (AgSnO) | 55 °C | -40 C | General Purpose | 25 ms | 25 A | Quick Connect - Multiple Sizes | 34.5 VAC | 28 VDC 250 VAC | 25 ms | 14.7 mA | DPDT (2 Form C) | 230 VAC | Chassis Mount | CE CSA GOST UL |
SCHNEIDER ELECTRIC | 4.25 kOhms | Non Latching | 700 W 6250 VA | Silver Tin Oxide (AgSnO) | 55 °C | -40 C | General Purpose | 25 ms | 25 A | Quick Connect - Multiple Sizes | 18 VAC | 28 VDC 250 VAC | 25 ms | 28.2 mA | DPDT (2 Form C) | 120 VAC | Chassis Mount | CE CSA GOST UL |
