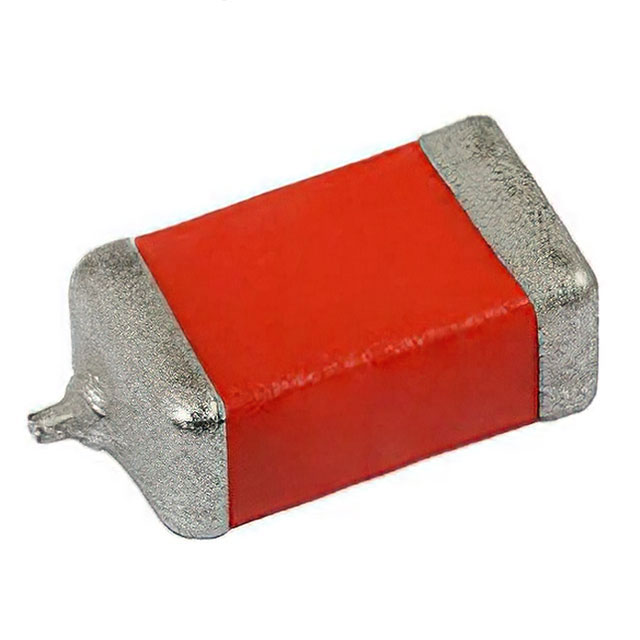

695D Series

Catalog

TANTALUM CAPACITORS - SOLID SMD 150UF 10VOLTS 20% H CASE CONFORMAL

Part	Manufacturer Size Code	Size / Dimension Width	Size / Dimension Length	Type	Height - Seated (Max)	Package / Case	Mounting Type	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Features	Tolerance	Capacitance	ESR (Equivalent Series Resistance)	Package Name	Pad Count
Vishay Dale 695D157X0010H2T	H	0.15 in	0.303 in	Conformal Coated	0.125 in	3015 (7038 Metric)	Surface Mount	10 V	125 °C	-55 °C	General Purpose	20 %	150 µF	400 mOhm
Vishay Dale 695D224X0035A2T	A	0.05 in	0.134 in	Conformal Coated	0.065 in	1305 (3413 Metric)	Surface Mount	35 V	125 °C	-55 °C	General Purpose	20 %	0.22 µF	20 Ohm
Vishay Dale 695D127X9010H2T	H	0.15 in	0.303 in	Conformal Coated	0.125 in	3015 (7038 Metric)	Surface Mount	10 V	125 °C	-55 °C	General Purpose	10 %	120 µF	450 mOhm
Vishay Dale 695D226X9025H2T	H	0.15 in	0.303 in	Conformal Coated	0.125 in	3015 (7038 Metric)	Surface Mount	25 VAC	125 °C	-55 °C	General Purpose	10 %	22 µF	700 mOhm
Vishay Dale 695D105X0050D2T	D	0.095 in	0.185 in	Conformal Coated	0.11 in	1810 (4724 Metric)	Surface Mount	50 V	125 °C	-55 °C	General Purpose	20 %	1 µF	8 Ohm	1810	0 PC Pad
Vishay Dale 695D106X9015D2T	D	0.095 in	0.185 in	Conformal Coated	0.11 in	1810 (4724 Metric)	Surface Mount	15 V	125 °C	-55 °C	General Purpose	10 %	10 µF	2.5 Ohm	1810	0 PC Pad
Vishay Dale 695D685X0050H2T	H	0.15 in	0.303 in	Conformal Coated	0.125 in	3015 (7038 Metric)	Surface Mount	50 V	125 °C	-55 °C	General Purpose	20 %	6.8 µF	1200 mOhm
Vishay Dale 695D157X9010H2T	H	0.15 in	0.303 in	Conformal Coated	0.125 in	3015 (7038 Metric)	Surface Mount	10 V	125 °C	-55 °C	General Purpose	10 %	150 µF	400 mOhm
Vishay Dale 695D336X9025H2T	H	0.15 in	0.303 in	Conformal Coated	0.125 in	3015 (7038 Metric)	Surface Mount	25 VAC	125 °C	-55 °C	General Purpose	10 %	33 µF	800 mOhm
Vishay Dale 695D685X9050H2T	H	0.15 in	0.303 in	Conformal Coated	0.125 in	3015 (7038 Metric)	Surface Mount	50 V	125 °C	-55 °C	General Purpose	10 %	6.8 µF	1200 mOhm
