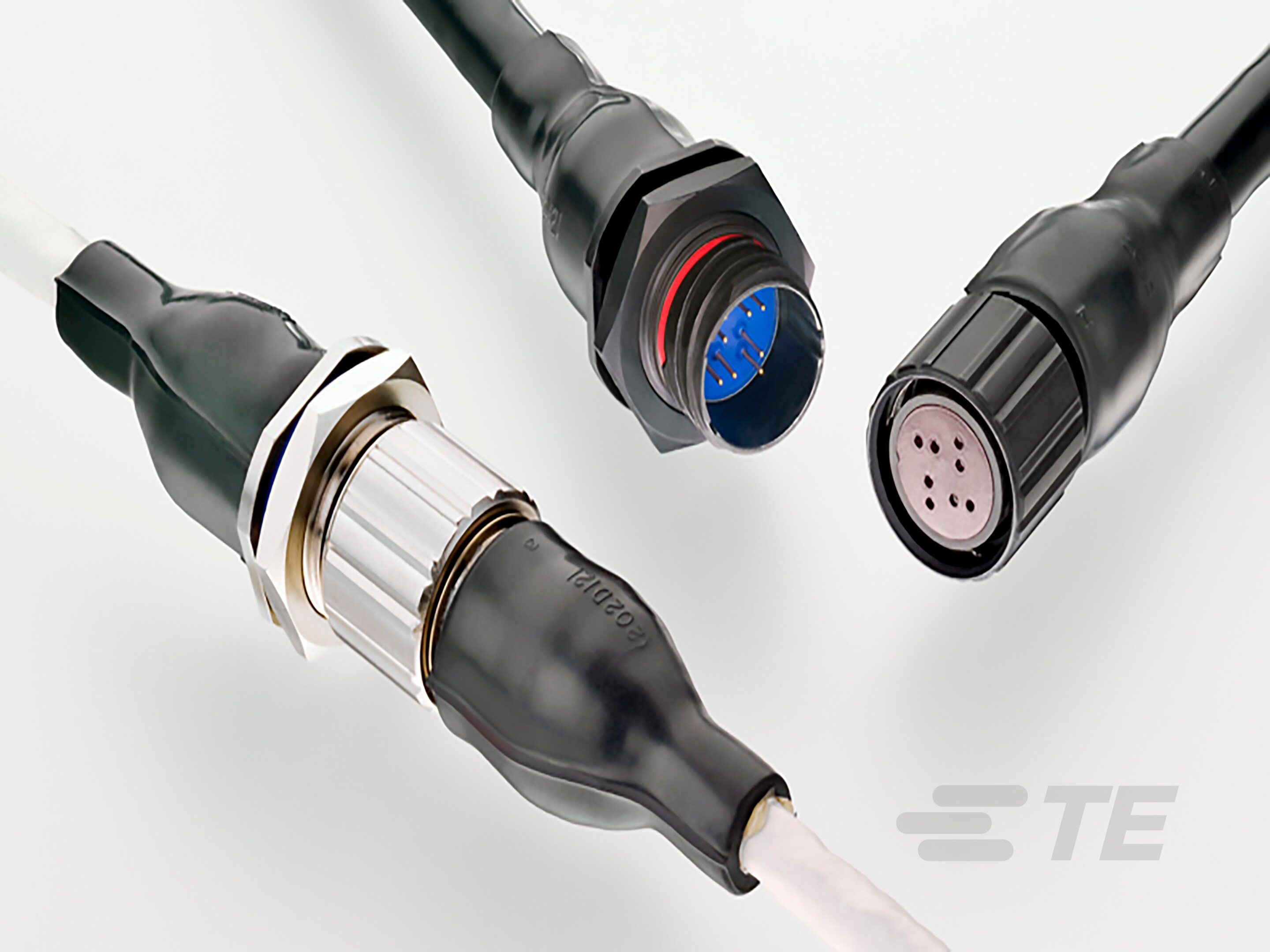

CeeLok FAS-T Connector Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CEELOK FAS-T, RECPT ASSY, PCB, SQ, ZNNI
| Part | Fastening Type | Shell Finish | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Orientation | Contact Material | Color | Contact Finish - Mating | Primary Material | Connector Type | Voltage Rating | Shell Material | Mounting Type | Mounting Feature | Insert Material | Shielding | Current Rating (Amps) | Termination | Shell Size - Insert | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Threaded | Black Zinc Nickel | IP67 - Dust Tight Waterproof | -65 ░C | 170 °C | 8 | N (Normal) | Beryllium Copper | Black | Gold | Metal | Receptacle Male Pins | 500 VAC | Aluminum | Panel Mount | Flange | Thermoplastic | Shielded | 5 A | Solder | 8 | Aviation Marine Military | |||
 TE Connectivity AMP Connectors | Threaded | Black Zinc Nickel | IP67 - Dust Tight Waterproof | -65 ░C | 170 °C | 8 | N (Normal) | Beryllium Copper | Black | Gold | Metal | Plug Female Sockets | 500 VAC | Aluminum | Free Hanging (In-Line) | Thermoplastic | Shielded | 5 A | Solder | 8 | Aviation Marine Military | 0.5 µm | 19.7 µin | Backshell | |
 TE Connectivity AMP Connectors | Threaded | Black Zinc Nickel | IP67 - Dust Tight Waterproof | -65 ░C | 170 °C | 8 | N (Normal) | Black | Gold | Metal | Receptacle Male Pins | 500 VAC | Aluminum | Panel Mount | Bulkhead - Front Side Nut | Shielded | 5 A | Solder | 8 |
