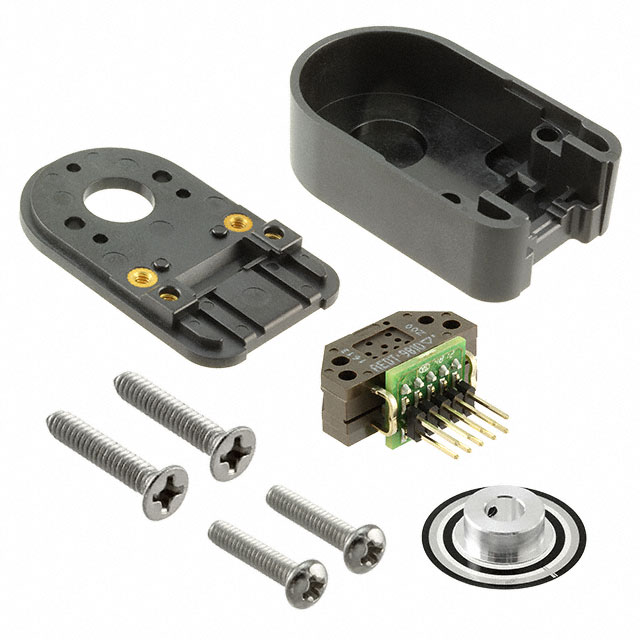

AEDC-5550 Series
Manufacturer: Broadcom Limited
Beta
⌘K
ENCODER 3CH 2000CPR 6MM
| Part | Encoder Type | Termination Style | Mounting Type | Orientation | Detent | Voltage - Supply [Max] | Voltage - Supply [Min] | Actuator Type | Built in Switch | Output Type | Pulses per Revolution |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Optical | Terminal Pins | Chassis Mount | Right Angle | 5.5 V | 4.5 V | Hole for Shaft | Differential Voltage | 2000 | ||
Broadcom Limited | Optical | Terminal Pins | Chassis Mount | Right Angle | 5.5 V | 4.5 V | Hole for Shaft | Differential Voltage | 1024 | ||
 Broadcom Limited | Optical | 5.5 V | 4.5 V | Hole for Shaft | Quadrature with Index (Incremental) | 5000 | |||||
Broadcom Limited | Optical | Terminal Pins | Chassis Mount | Right Angle | 5.5 V | 4.5 V | Hole for Shaft | Differential Voltage | 1000 |
