LD LICC Series
Manufacturer: KYOCERA AVX
Beta
⌘K

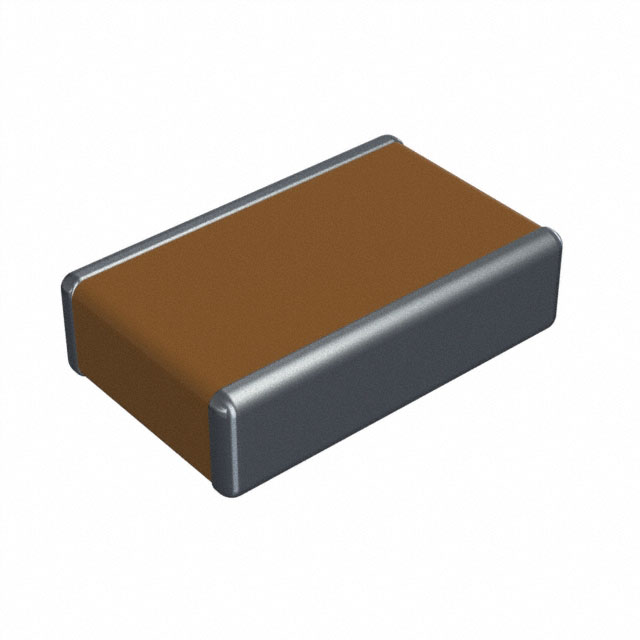

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 16V .056UF X7R 0508 REV 10% TOL
| Part | Features | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance | Voltage - Rated | Temperature Coefficient | Thickness (Max) [Max] | Thickness (Max) [Max] | Applications | Mounting Type | Tolerance | Thickness (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | Low ESL (Reverse Geometry) | 0508 (1220 Metric) | 0.05 " | 0.079 in | 1.27 mm | 2 mm | -55 C | 125 °C | 56000 pF | 16 V | X7R | 0.022 in | 0.56 mm | General Purpose | MLCC Surface Mount | 10 % | |
 KYOCERA AVX | Low ESL (Reverse Geometry) | 0508 Wide 0805 (2012 Metric) | 0.05 " | 0.08 in | 1.27 mm | 2.03 mm | -55 C | 125 °C | 10000 pF | 16 V | X7R | General Purpose | MLCC Surface Mount | 10 % | |||
KYOCERA AVX | Low ESL (Reverse Geometry) | 0508 Wide 0805 (2012 Metric) | 0.05 " | 0.08 in | 1.27 mm | 2.03 mm | -55 C | 125 °C | 100000 pF | 6.3 VDC | X7R | General Purpose | MLCC Surface Mount | 10 % | |||
 KYOCERA AVX | Low ESL (Reverse Geometry) | 0612 (1632 Metric) | 0.063 " | 0.126 in | 1.6 mm | 3.2 mm | -55 C | 85 °C | 1 µF | 16 V | X5R | 0.05 in | General Purpose | MLCC Surface Mount | 10 % | 1.27 mm | |
KYOCERA AVX | Low ESL (Reverse Geometry) | 0508 Wide 0805 (2012 Metric) | 0.05 " | 0.08 in | 1.27 mm | 2.03 mm | -55 C | 125 °C | 10000 pF | 50 VDC | X7R | General Purpose | MLCC Surface Mount | 10 % |
