MAX5216 Series

Catalog

MODULE PERIPHERAL FOR MAX5216

Part	Data Interface	Supplied Contents	Settling Time	Number of Bits	Number of DAC's	Utilized IC / Part	DAC Type	Architecture	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	INL/DNL (LSB)	Mounting Type	Reference Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Package / Case	Package / Case [custom]	Package / Case

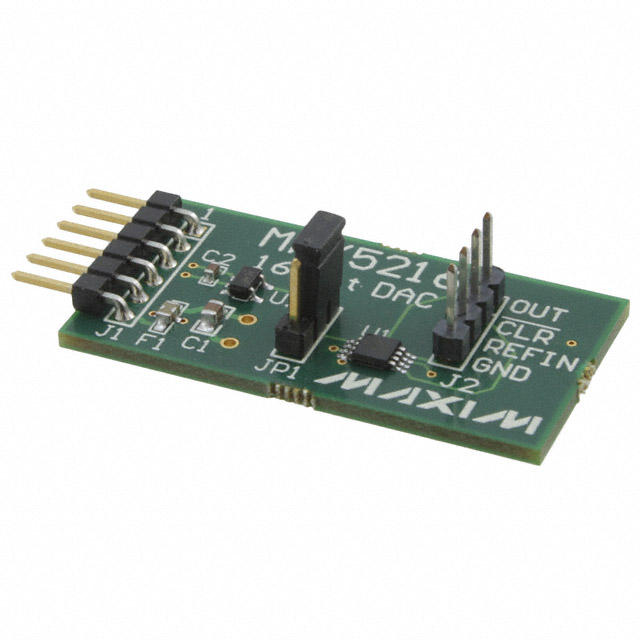

Analog Devices Inc./Maxim Integrated MAX5216PMB1#	DSP MICROWIRE™ QSPI™ Serial SPI™	Board(s)	14 µs	16	1	MAX5216	Voltage

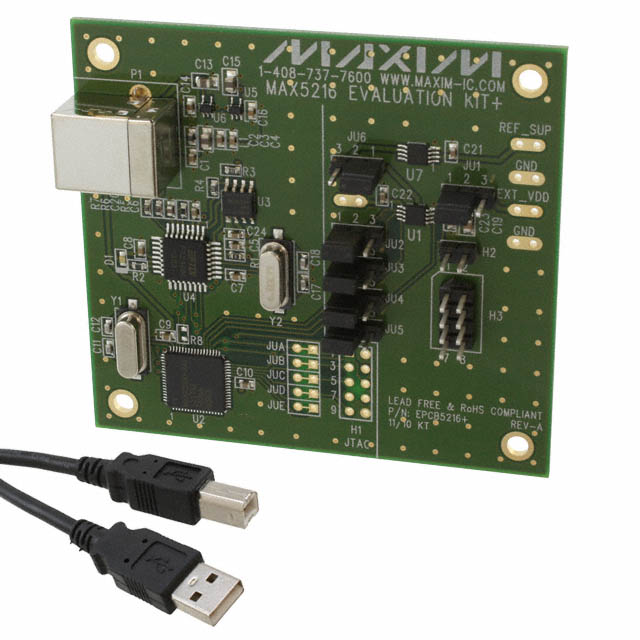

Analog Devices Inc./Maxim Integrated MAX5216EVKIT+	DSP MICROWIRE™ QSPI™ Serial SPI™	Board(s) Cable(s)	14 µs	16	1	MAX5216	Voltage
Analog Devices Inc./Maxim Integrated MAX5216BGUA+	DSP SPI		18 µs	16				String DAC	8-uMAX/uSOP	-40 °C	105 ░C	Voltage - Buffered	0.25 LSB 3 LSB	Surface Mount	External	5.5 V	2.7 V	2.7 V	5.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm
Analog Devices Inc./Maxim Integrated MAX5216BGUA+T	DSP SPI		18 µs	16				String DAC	8-uMAX/uSOP	-40 °C	105 ░C	Voltage - Buffered	0.25 LSB 3 LSB	Surface Mount	External	5.5 V	2.7 V	2.7 V	5.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm
