2SB1219 Series

Catalog

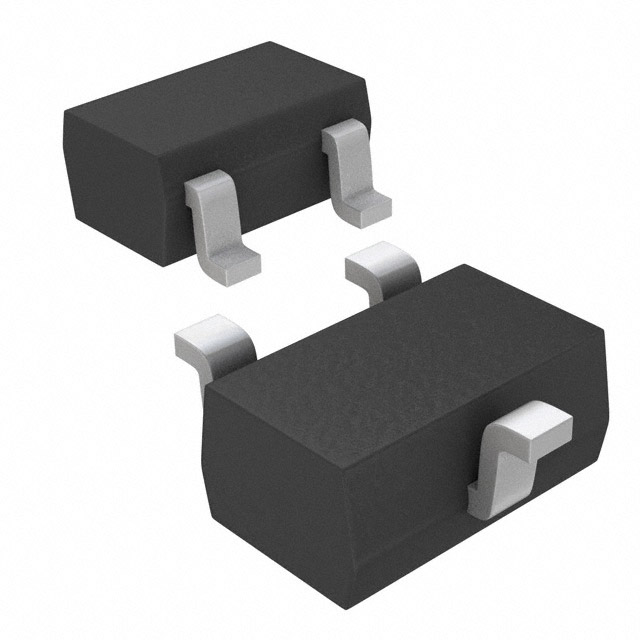

TRANS PNP 25V 0.5A SMINI3

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Operating Temperature	Power - Max [Max]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Package / Case	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Panasonic Electronic Components 2SB12190RL	25 V	200 MHz	600 mV	Surface Mount	150 °C	150 mW	PNP	100 nA	SC-70 SOT-323	SMini3-G1	500 mA	120
Panasonic Electronic Components 2SB1219GSL	50 V	200 MHz	600 mV	Surface Mount	150 °C	150 mW	PNP	100 nA	SC-85	SMini3-F2	500 mA	170
Panasonic Electronic Components 2SB1219ASL	50 V	200 MHz	600 mV	Surface Mount	150 °C	150 mW	PNP	100 nA	SC-70 SOT-323	SMini3-G1	500 mA	170
