HA-003 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

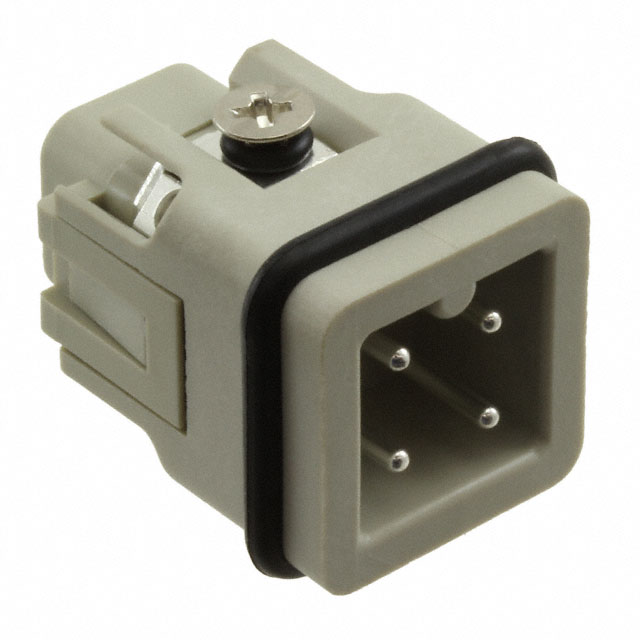

INSERT MALE 3+1GND SCREW
| Part | Material Flammability Rating | Housing Material | Contact Finish | Gender | Connector Type | Voltage Rating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | Polycarbonate (PC) | Silver | Male | Insert | 250 V | 3+Ground | 125 °C | -40 C | Screw | 10 A |
 TE Connectivity AMP Connectors | UL94 V-0 | Polycarbonate (PC) | Silver | Female | Insert | 250 V | 3+Ground | 125 °C | -40 C | Screw | 10 A |
