333-033 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 33 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Part	Material - Insulation	Termination Rows	Number of Positions [custom]	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Material	Contact Finish	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Card Type	Termination	Number of Positions/Bay/Row	Mounting Type	Read Out	Gender	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]

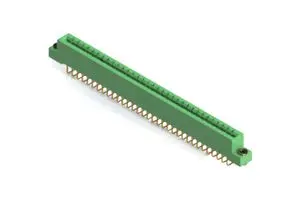

EDAC Inc. 333-033-558-103	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Wire Wrap	33	Right Angle Through Hole	Single	Female	Cantilever	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 333-033-559-104	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Wire Wrap	33	Right Angle Through Hole	Single	Female	Cantilever	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm

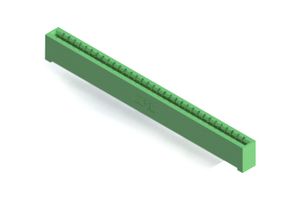

EDAC Inc. 333-033-521-101	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Solder	33	Through Hole	Single	Female	Cantilever
EDAC Inc. 333-033-544-612	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Wire Wrap	33	Through Hole	Single	Female	Cantilever	0.128 "	Side Mount Opening Unthreaded	3.25 mm
EDAC Inc. 333-033-544-102	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Wire Wrap	33	Through Hole	Single	Female	Cantilever	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 333-033-523-108	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Solder	33	Through Hole	Single	Female	Cantilever		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 333-033-521-603	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Solder	33	Through Hole	Single	Female	Cantilever	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm

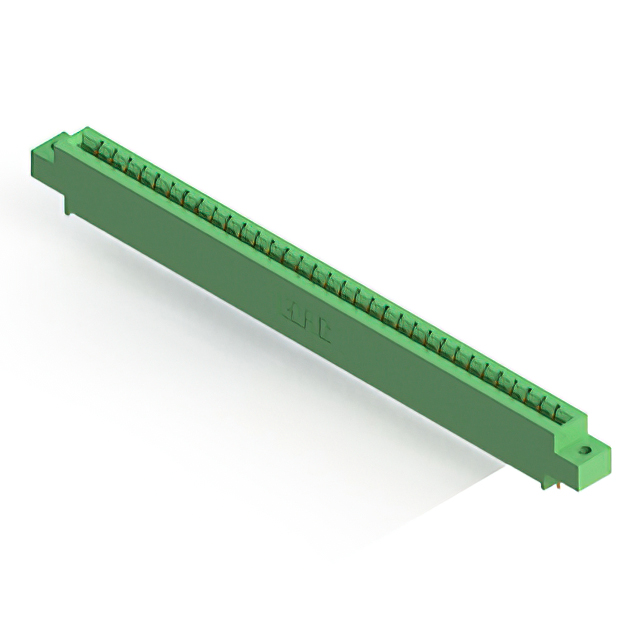

EDAC Inc. 333-033-520-602	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Solder	33	Through Hole	Single	Female	Cantilever	0.128 "		3.25 mm
EDAC Inc. 333-033-542-108	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Wire Wrap	33	Through Hole	Single	Female	Cantilever		4-40 Flush Mount Threaded Insert Top Opening

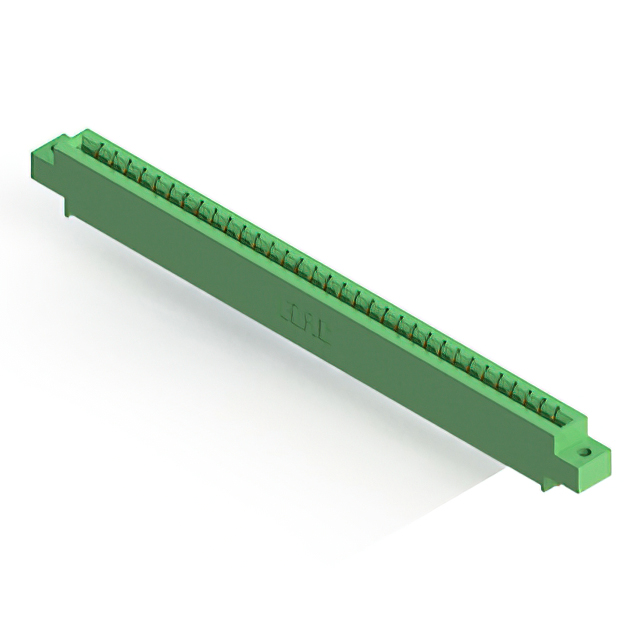

EDAC Inc. 333-033-521-602	Polyester Thermoplastic	1	33	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Copper Alloy	Gold	3.96 mm	0.156 in	0.25 Ám	10 Áin	-40 C	105 ░C	1	Non Specified - Single Edge	Solder	33	Through Hole	Single	Female	Cantilever	0.128 "		3.25 mm
