QS18VN6 Series

Catalog

PHOTOELECTRIC SENSOR, WORLD-BEAM QS18, BACKGROUND SUPPRESSION, 300 MM, NPN, 10 TO 30 VDC, PRE-WIRED

Part	Ingress Protection	Response Time	Light Source	Adjustment Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Connection Method	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Output Configuration	Light Source

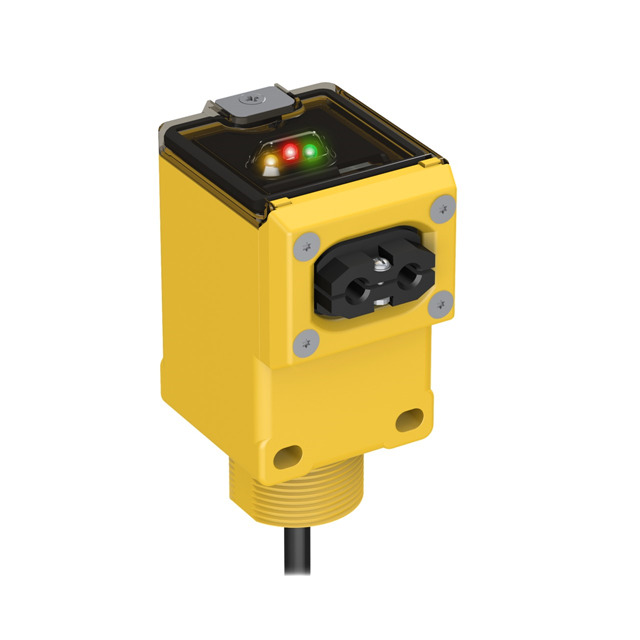

BANNER ENGINEERING QS18VN6AF300 W/30	IEC IEC IP67 IP67 NEMA 6P	2.5 ms	Red (640nm)	Adjustable	10 VDC	30 VDC	Background Suppression	Cable with Connector	30 cm	11.811 "	55 °C	-20 ░C	354.33 in	9 m
BANNER ENGINEERING QS18VN6D W/30	IEC IEC IP67 IP67 NEMA 6P	600 µs	Infrared	Adjustable Potentiometer	10 VDC	30 VDC	Diffuse	Cable	450 mm	17.717 "	70 °C	-20 ░C	354.33 in	9 m

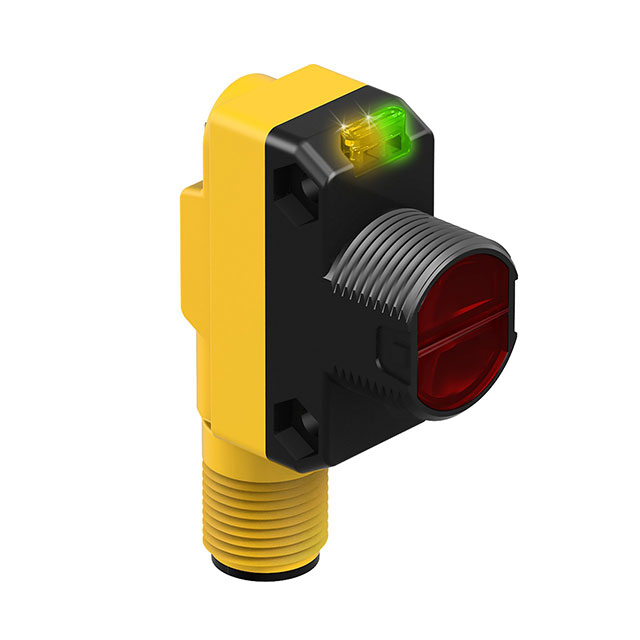

BANNER ENGINEERING QS18VN6FF100Q8	IP67 NEMA 6P	850 µs	Red LED		10 VDC	30 VDC	Background Suppression	Connector	10 cm	3.937 in	70 °C	-20 ░C			NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6FF100	IEC IEC IP67 IP67 NEMA 6P	850 µs	LED		10 VDC	30 VDC	Background Suppression	Cable	10 cm	3.937 in	70 °C	-20 ░C	78.74 "	2 m	NPN - Dark-ON/Light-ON

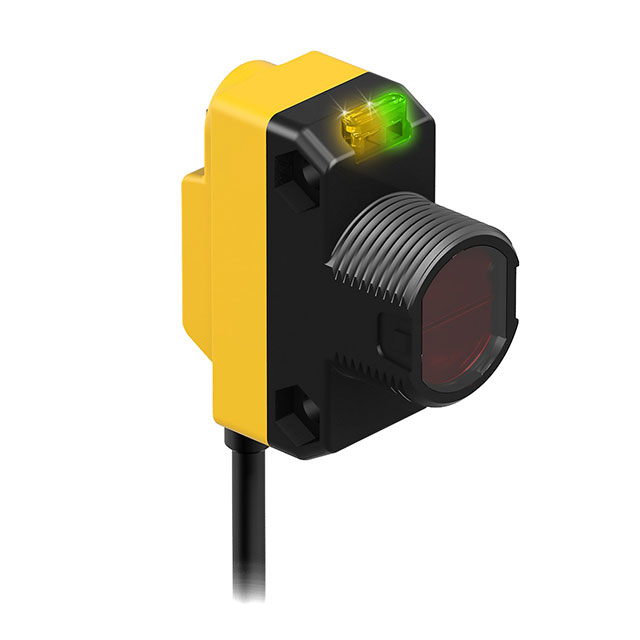

BANNER ENGINEERING QS18VN6LP	IEC IEC IP67 IP67 NEMA 6P	600 µs	LED	Adjustable Potentiometer	10 VDC	30 VDC	Polarized Retroreflective	Cable	350 cm	137.795 in	70 °C	-20 ░C	78.74 "	2 m	NPN - Dark-ON/Light-ON

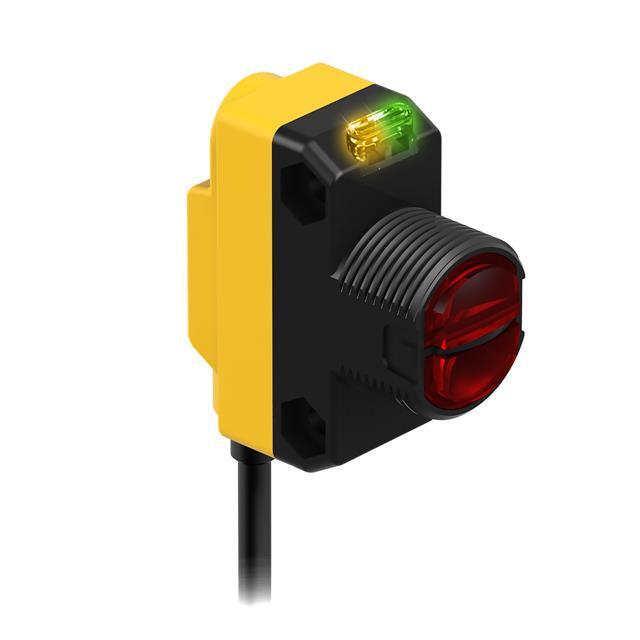

BANNER ENGINEERING QS18VN6CV45Q5	IEC IP67 NEMA 6P	600 µs	Red (630nm)	Adjustable Potentiometer	10 VDC	30 VDC	Convergent	Connector	43 mm	1.693 in	70 °C	-20 ░C
BANNER ENGINEERING QS18VN6AF100	IP67 NEMA 6P	700 µs	Red (660nm)	Adjustable	10 VDC	30 VDC	Background Suppression	Cable	10 cm	3.937 in	70 °C	-20 ░C	78.74 "	2 m	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6LAFQ5	IP67 NEMA 6P	700 µs	RED (650nm)	Adjustable	10 VDC	30 VDC	Background Suppression	Connector	15 cm	5.906 "	50 °C	-10 °C			NPN - Dark-ON/Light-ON

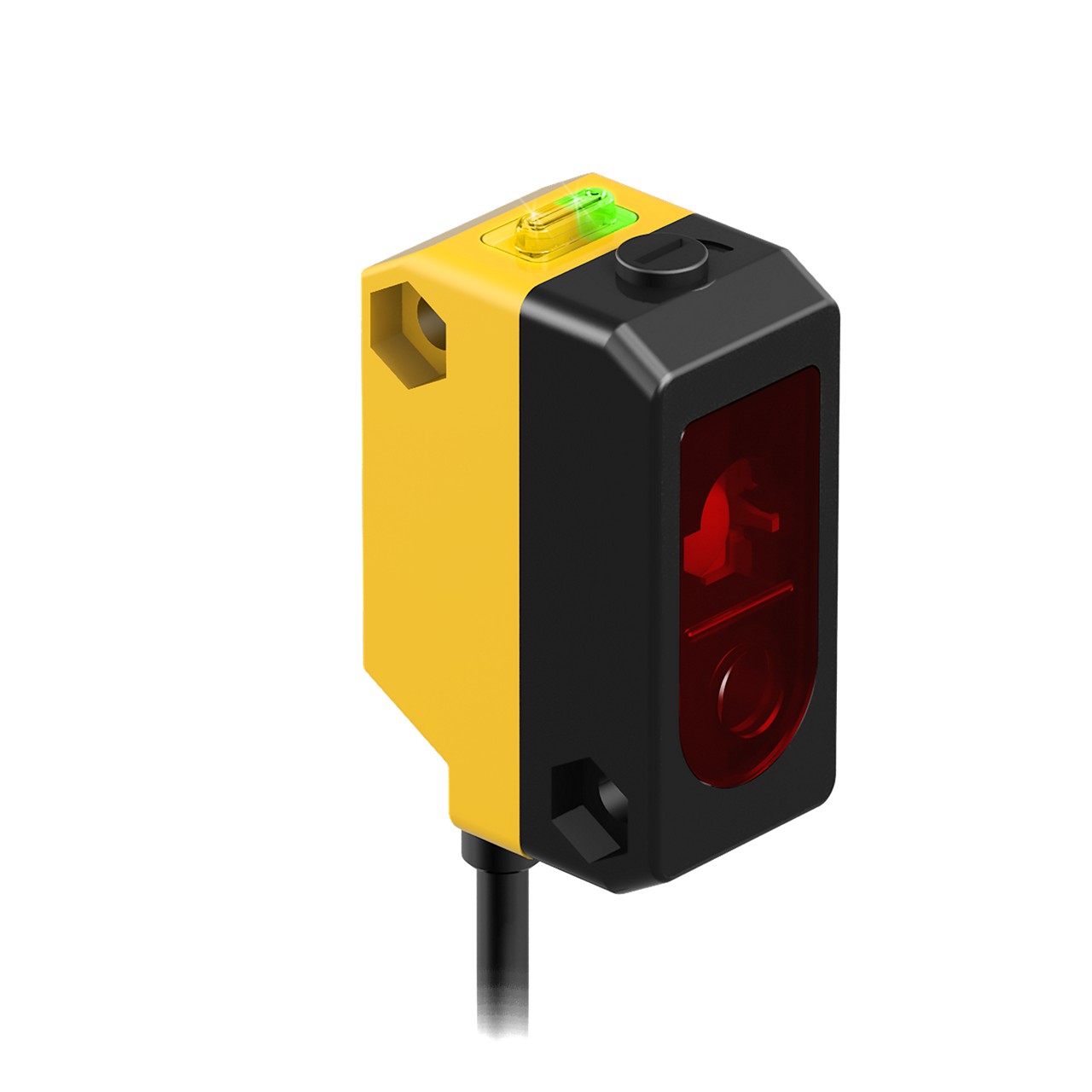

BANNER ENGINEERING QS18VN6LAF250Q	IEC IEC IP67 IP67 NEMA 6P	700 µs	Red	Adjustable	10 VDC	30 VDC	Background Suppression	Cable			50 °C	-10 °C	78.74 "	2 m		658 nm
BANNER ENGINEERING QS18VN6DQ8	IEC IEC IP67 IP67 NEMA 6P	600 µs	LED	Adjustable Potentiometer	10 VDC	30 VDC	Diffuse	Connector	450 mm	17.717 "	70 °C	-20 ░C			NPN - Light-ON
