TMA166 Series

Catalog

TRIAC 600V 16A TO3PF

Part	Voltage - Off State	Package / Case	Current - On State (It (RMS)) (Max) [Max]	Triac Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [custom]	Current - Non Rep. Surge 50, 60Hz (Itsm) [custom]

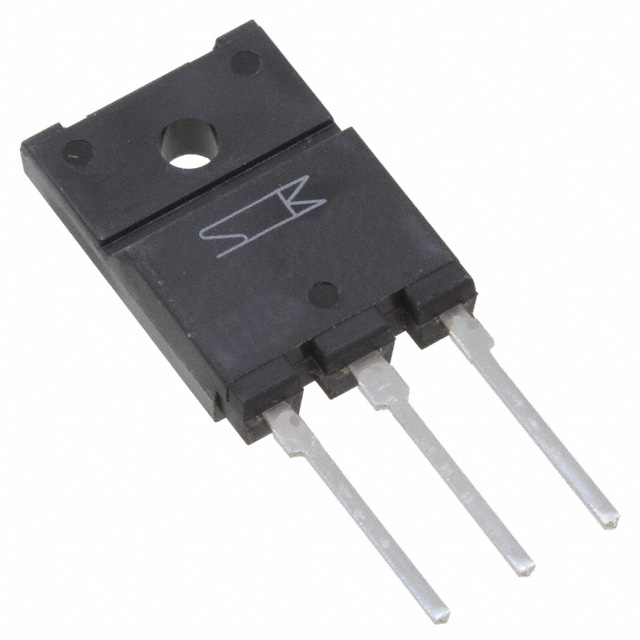

Sanken Electric USA Inc. TMA166B-L	600 V	TO-3P-3 Full Pack	16 A	Standard	180 A	190 A	TO-3PF	Through Hole	-40 C	125 °C	Single	1.5 V	30 mA

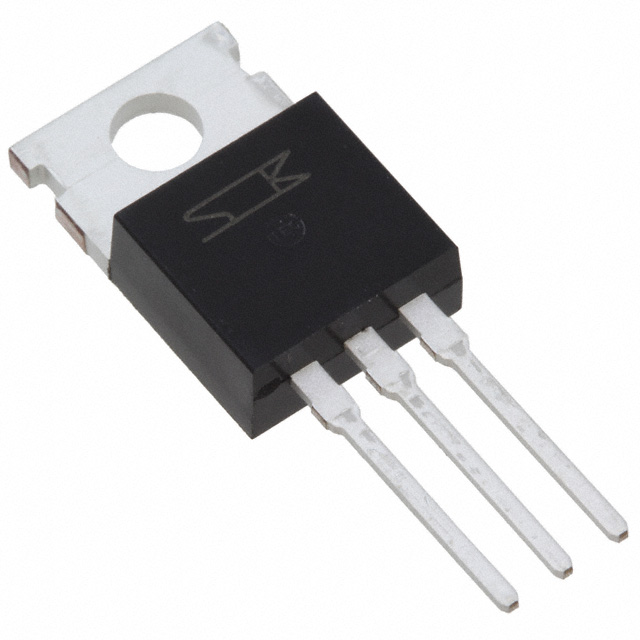

Sanken Electric USA Inc. TMA166G-L	600 V	TO-220-3	16 A	Standard			TO-220-3	Through Hole	-40 C	125 °C	Single	1.5 V	30 mA	168 A	160 A

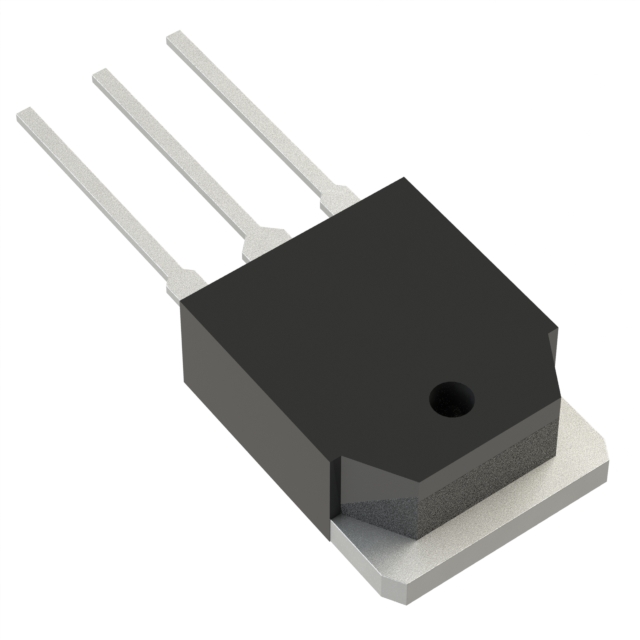

Sanken Electric USA Inc. TMA166P-L	600 V	TO-3P-3 Full Pack	16 A	Standard	180 A	190 A	TO-3P	Through Hole	-40 C	125 °C	Single	1.5 V	30 mA
Sanken Electric USA Inc. TMA166S-L	600 V	TO-220-3 Full Pack	16 A	Standard			TO-220F	Through Hole	-40 C	125 °C	Single	1.5 V	30 mA	168 A	160 A
