RFAA292 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

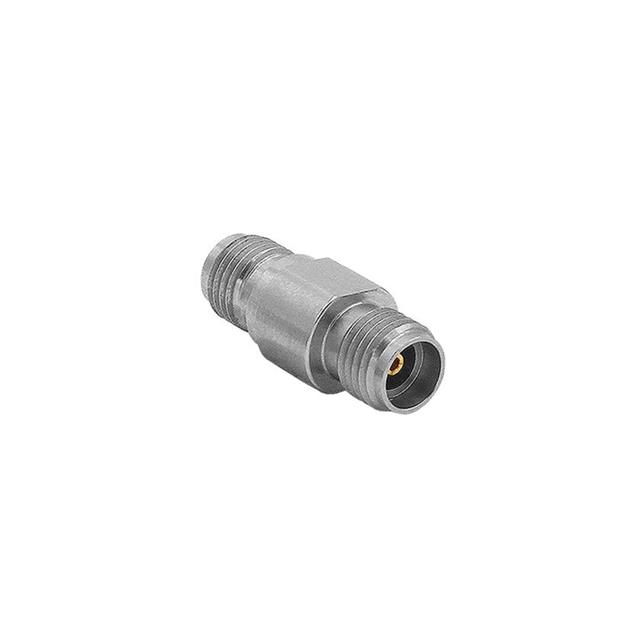

RF / COAXIAL ADAPTER, 2.92MM COAXIAL, JACK, 3.5MM COAXIAL, JACK, STRAIGHT ADAPTER, 50 OHM
| Part | Center Contact Material | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Conversion Type | Impedance | Convert To (Adapter End) | Style | Adapter Type | Mounting Type | Adapter Series [Min] | Adapter Series [Max] | Center Gender | Frequency - Max [Max] | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Beryllium Copper | 500 | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 85 °C | -40 C | OS-2.9 | Jack Female Socket | 2.92 mm | Between Series | 50 Ohms | 3.5mm Jack Female Socket | Straight | Jack to Jack | Free Hanging (In-Line) | 2.92 mm | 3.5 mm | Female to Female | 40 GHz | |
BULGIN LIMITED | Beryllium Copper | 500 | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 85 °C | -40 C | OS-2.9 | Jack Female Socket | 2.92 mm | Same Series | 50 Ohms | 2.92mm (OS-2.9) Plug Male Pin | Straight | Plug to Jack | Free Hanging (In-Line) | 2.92 mm | 2.92 mm | 40 GHz | ||
BULGIN LIMITED | Beryllium Copper | 500 | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 85 °C | -40 C | OS-2.9 | Jack Female Socket | 2.92 mm | Between Series | 50 Ohms | 3.5mm Plug Male Pin | Straight | Plug to Jack | Free Hanging (In-Line) | 2.92 mm | 3.5 mm | 40 GHz | ||
BULGIN LIMITED | Beryllium Copper | 500 | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 85 °C | -40 C | OS-2.9 | Jack Female Socket | 2.92 mm | Same Series | 50 Ohms | Jack Female Socket | Straight | Jack to Jack | Free Hanging (In-Line) | 2.92 mm | 2.92 mm | Female to Female | 40 GHz | 2.92 mm |
 BULGIN LIMITED | Beryllium Copper | 500 | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 85 °C | -40 C | Plug Male Pin | 2.92 mm | Same Series | 50 Ohms | 2.92mm (OS-2.9) Plug Male Pin | Straight | Plug to Plug | Free Hanging (In-Line) | 2.92 mm | 2.92 mm | Male to Male | 40 GHz | ||
 BULGIN LIMITED | Beryllium Copper | 500 | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 85 °C | -40 C | Plug Male Pin | 2.92 mm | Between Series | 50 Ohms | 3.5mm Plug Male Pin | Straight | Plug to Plug | Free Hanging (In-Line) | 2.92 mm | 3.5 mm | Male to Male | 40 GHz |
