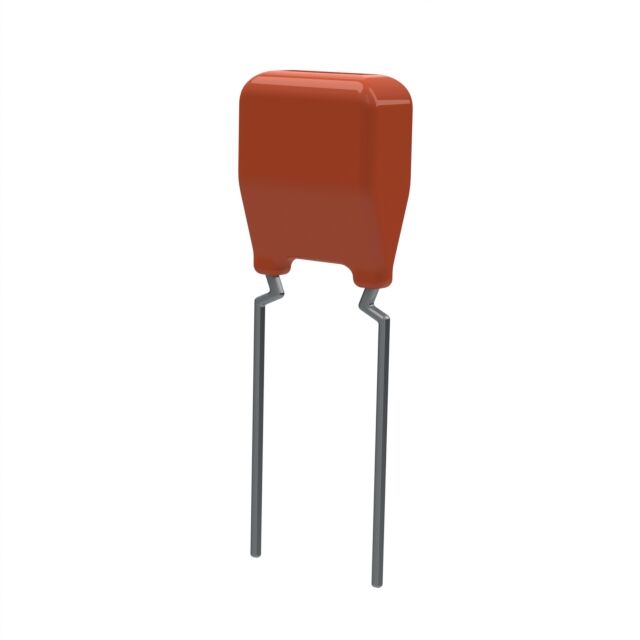

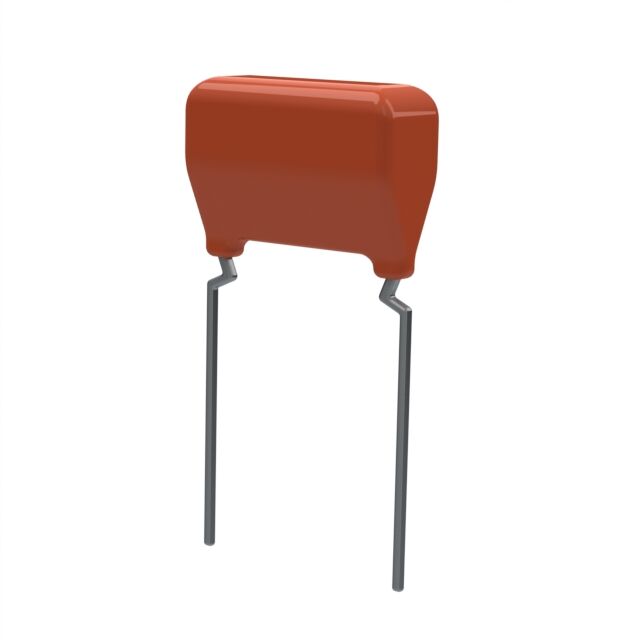

BFC2479 Series

Catalog

MKP 1ΜF ±5% 400VDC PITCH 27,5MM

Part	Mounting Type	Tolerance	Applications	Features	Dielectric Material	Package / Case	Voltage Rating - AC	Termination	Capacitance	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Lead Spacing	Voltage Rating - DC	Operating Temperature (Min)	Operating Temperature (Max)
Vishay Dale BFC247952105	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	200 Vpk	PC Pins	1 µF	0.472 in	1.181 in	0.984 in	1.083 in	400 V	-55 °C	105 °C
Vishay Dale BFC247935274	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	100 V	PC Pins	0.27 µF	0.276 in	0.728 in	0.63 in	0.591 in	160 V	-55 °C	105 °C
Vishay Dale BFC247932204	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	100 V	PC Pins	0.2 µF	0.256 in	0.728 in	0.61 in	0.591 in	160 V	-55 °C	105 °C
Vishay Dale BFC247942513	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	160 V	PC Pins	0.051 µF	0.236 in	0.492 in	0.591 in	0.394 in	250 VDC	-55 °C	105 °C
Vishay Dale BFC247944134	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	160 V	PC Pins	0.13 µF	0.256 in	0.728 in	0.61 in	0.591 in	250 VDC	-55 °C	105 °C
Vishay Dale BFC247942434	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	160 V	PC Pins	0.43 µF	0.354 in	0.728 in	0.709 in	0.591 in	250 VDC	-55 °C	105 °C
Vishay Dale BFC247942134	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	160 V	PC Pins	0.13 µF	0.256 in	0.728 in	0.61 in	0.591 in	250 VDC	-55 °C	105 °C
Vishay Dale BFC247952124	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	200 Vpk	PC Pins	0.12 µF	0.276 in	0.728 in	0.63 in	0.591 in	400 V	-55 °C	105 °C
Vishay Dale BFC247942164	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	160 V	PC Pins	0.16 µF	0.256 in	0.728 in	0.61 in	0.591 in	250 VDC	-55 °C	105 °C
Vishay Dale BFC247942683	Through Hole	5 %	DV/DT High Pulse	Long Life	Metallized Polypropylene (PP)	Radial	160 V	PC Pins	0.068 µF	0.236 in	0.492 in	0.591 in	0.394 in	250 VDC	-55 °C	105 °C
