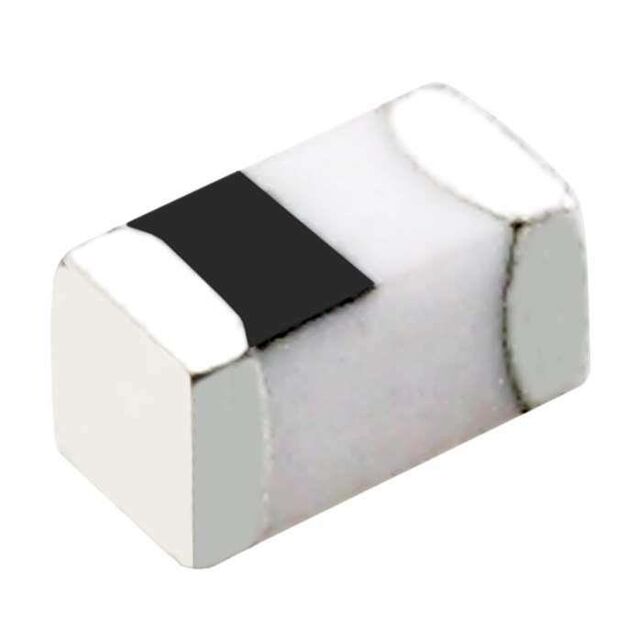

AIMC-Q0201HQ Series

Catalog

IND 2.2NH 0.6A 150MOHM

Part	Current Rating (Amps)	Package / Case	Package / Case	Supplier Device Package	Supplier Device Package	Inductance Frequency - Test	Shielding	Type	DC Resistance (DCR)	Material - Core	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Q @ Freq [custom]	Q @ Freq [custom]	Mounting Type	Ratings	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	DC Resistance (DCR) [Max]
Abracon LLC AIMC-Q0201HQ-2N2B-T	600 mA	0603 Metric	0201	0603 Metric	0201	500 MHz	Unshielded	Multilayer	150 mOhm	Ceramic	0.1 nH	0.012 in	0.024 in	0.3 mm	0.6 mm	500 MHz	14	Surface Mount	AEC-Q200	11 GHz	-55 C	125 °C
Abracon LLC AIMC-Q0201HQ-10NJ-T	0.25 A	0603 Metric	0201	0603 Metric	0201	500 MHz	Unshielded	Multilayer	700 mOhm	Ceramic	5 %	0.012 in	0.024 in	0.3 mm	0.6 mm	500 MHz	14	Surface Mount	AEC-Q200	3.2 GHz	-55 C	125 °C	10 nH
Abracon LLC AIMC-Q0201HQ-3N0B-T	0.45 A	0603 Metric	0201	0603 Metric	0201	500 MHz	Unshielded	Multilayer		Ceramic	0.1 nH	0.012 in	0.024 in	0.3 mm	0.6 mm	500 MHz	14	Surface Mount	AEC-Q200	9.5 GHz	-55 C	125 °C	3 nH	250 mOhm
Abracon LLC AIMC-Q0201HQ-3N1S-T	0.45 A	0603 Metric	0201	0603 Metric	0201	500 MHz	Unshielded	Multilayer		Ceramic	0.3 nH	0.012 in	0.024 in	0.3 mm	0.6 mm	500 MHz	14	Surface Mount	AEC-Q200	8 GHz	-55 C	125 °C	3.1 nH	250 mOhm
Abracon LLC AIMC-Q0201HQ-1N9B-T	600 mA	0603 Metric	0201	0603 Metric	0201	500 MHz	Unshielded	Multilayer	150 mOhm	Ceramic	0.1 nH	0.012 in	0.024 in	0.3 mm	0.6 mm	500 MHz	14	Surface Mount	AEC-Q200	12.5 GHz	-55 C	125 °C	1.9 nH
