684M Series
Manufacturer: NorComp Inc.
Beta
⌘K

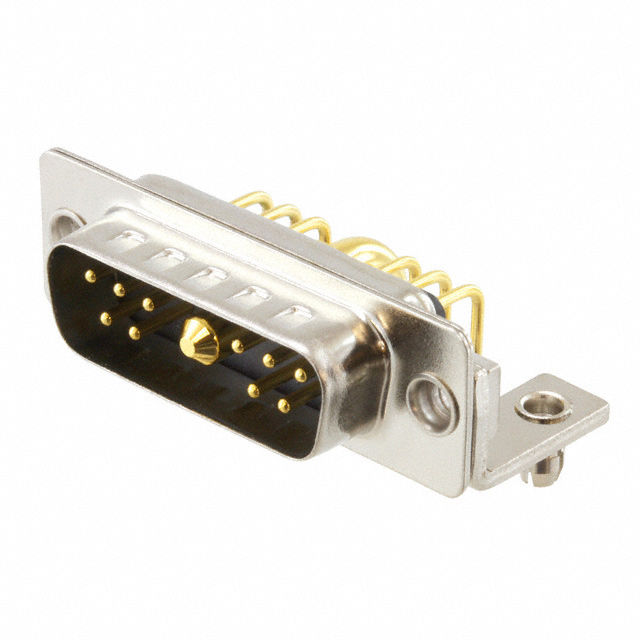

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 684M SERIES, DA-11W1, PLUG, 11 CONTACTS, THROUGH HOLE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Connector Type | Material Flammability Rating | Current Rating (Amps) | Flange Feature | Flange Feature | Number of Positions [custom] | Number of Positions [custom] | Contact Finish | Contact Type | Features | Contact Finish Thickness | Mounting Type | Number of Rows [custom] | Termination | Shell Material, Finish | Connector Style | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Number of Positions | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 125 °C | Copper Alloy | Polybutylene Terephthalate (PBT) | Plug Male Pins | UL94 V-0 | 5 A 40 A | Housing/Shell | 4-40 | 10 | 1 | Gold | Signal and Power | Board Lock Grounding Indents Mounting Brackets | Flash | Board Edge Right Angle Through Hole | 2 | Solder | Nickel Plated Steel | Combo D-Sub | 2 (DA A) - 11C1 11W1 | ||||
 NorComp Inc. | Plug Male Pins | UL94 V-0 | 40 A | Housing/Shell | 4-40 | Gold | Power | Board Lock Grounding Indents Mounting Brackets | Flash | Board Edge Right Angle Through Hole | Solder | Nickel Plated Steel | Combo D-Sub | 2 (DA A) - 3W3 | 14 mm | 0.551 in | 3 | 1 |
