79207 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

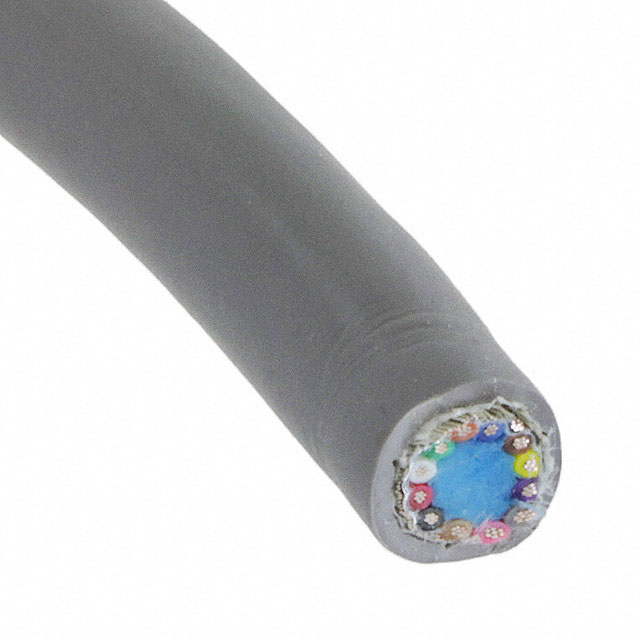

CABLE 12COND 20AWG SHLD
| Part | Shield Material | Shield Coverage | Length | Length | Voltage | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Shield Type | Conductor Insulation | Ratings | Cable Type | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 304.8 m | 1000 ft | 600 V | 12 | 10 | 30 AWG | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Slate | 0.335 in | 8.51 mm | Copper Tinned | Braid Foil | Polyphenylene Ether Modified (mPPE) | ISO 10993 | Multi-Conductor | Biological Compatibility | 0.035 in | 0.889 mm | 20 AWG |
