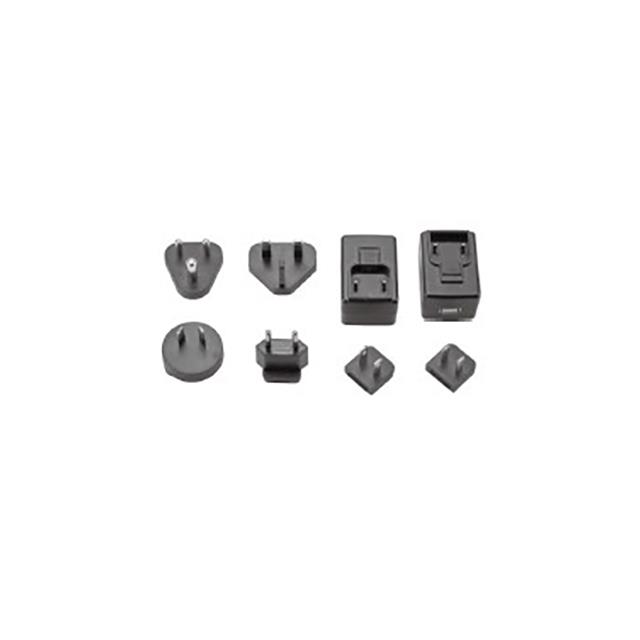

PEAMW20I Series

Wall Mount Power Supply 24V 20 Watt

Manufacturer: TT Electronics/BI

Catalog

Wall Mount Power Supply 24V 20 Watt

Catalog

Wall Mount Power Supply 24V 20 Watt

Part	Voltage - Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Input Type	Power (Watts)	Input Connector	Region Utilized	Applications	No Load Power Consumption	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Output Connector	Output Connector [diameter]	Output Connector [x]	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Form	Cord Length	Cord Length	Efficiency	Approval Agency
TT Electronics/BI PEAMW20I-18-B1	48 V	1.54 in	57.2 mm	34 mm	2.25 "	1.34 "	39 mm	410 mA	Multi-Blade (Included)	20 W	Multi-Blade	International	Medical	100 mW	0 °C	60 °C	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	60601-1	264 VAC	90 VAC	Wall Mount	70.9 "	1.8 m	Level VI	CB CE cURus FCC TUV
TT Electronics/BI PEAMW20I-10-B1	5 V	1.54 in	57.2 mm	34 mm	2.25 "	1.34 "	39 mm	3 A	Multi-Blade (Included)	15 W	Multi-Blade	International	Medical	100 mW	0 °C	60 °C	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	60601-1	264 VAC	90 VAC	Wall Mount	70.9 "	1.8 m	Level VI	CB CE cURus FCC TUV
TT Electronics/BI PEAMW20I-12-B1	12 V	1.54 in	57.2 mm	34 mm	2.25 "	1.34 "	39 mm	1.66 A	Multi-Blade (Included)	20 W	Multi-Blade	International	Medical	100 mW	0 °C	60 °C	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	60601-1	264 VAC	90 VAC	Wall Mount	70.9 "	1.8 m	Level VI	CB CE cURus FCC TUV
TT Electronics/BI PEAMW20I-14-B1	24 V	1.54 in	57.2 mm	34 mm	2.25 "	1.34 "	39 mm	830 mA	Multi-Blade (Included)	20 W	Multi-Blade	International	Medical	100 mW	0 °C	60 °C	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	60601-1	264 VAC	90 VAC	Wall Mount	70.9 "	1.8 m	Level VI	CB CE cURus FCC TUV
