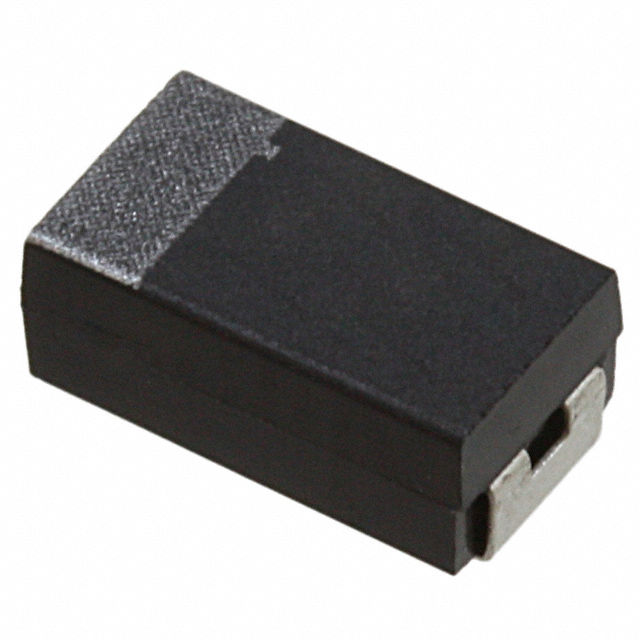

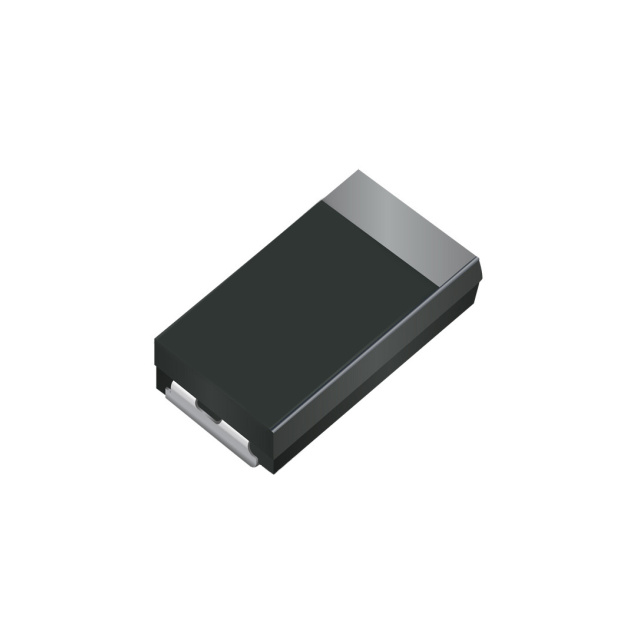

F93-AJ6 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
TANTALUM CAPACITORS - SOLID SMD 10V 33UF 20% 1206 ESR=2.5OHM AEC-Q200
| Part | Mounting Type | Tolerance | Capacitance | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | ESR (Equivalent Series Resistance) | Package / Case | Features | Qualification | Ratings | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Manufacturer Size Code | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Grade | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | Surface Mount | 20 % | 33 ÁF | 10 V | -55 C | 125 °C | 2.5 Ohm | 1206 (3216 Metric) | Automotive | AEC-Q200 | AEC-Q200 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | A | 1.8 mm | 0.071 in | Molded | Automotive | |||
 KYOCERA AVX | Surface Mount | 10 % | 33 ÁF | 35 V | -55 C | 125 °C | 700 mOhm | 2917 (7343 Metric) | Automotive | AEC-Q200 | AEC-Q200 | 0.169 " | 0.287 " | 7.3 mm | 4.3 mm | N | Molded | Automotive | 0.118 " | 3 mm | 2000 Hrs | ||
 KYOCERA AVX | Surface Mount | 20 % | 470 µF | 6.3 VDC | -55 C | 125 °C | 300 mOhm | 2917 (7343 Metric) | Automotive | AEC-Q200 | AEC-Q200 | 0.169 " | 0.287 " | 7.3 mm | 4.3 mm | N | Molded | Automotive | 0.118 " | 3 mm |
