TOP256 Series

Catalog

IC OFFLINE SWITCH FLYBACK 8SMD

Part	Fault Protection	Duty Cycle	Voltage - Breakdown	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching	Package / Case	Supplier Device Package	Topology	Power (Watts)	Output Isolation	Package / Case	Package / Case

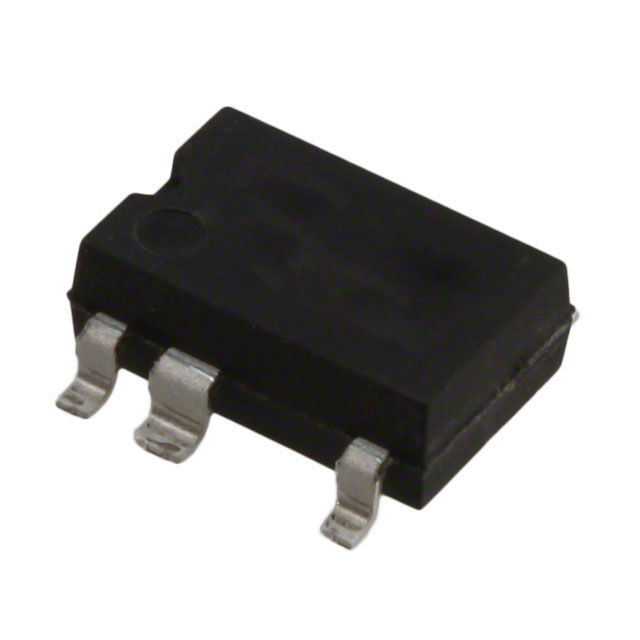

POWER INTEGRATIONS TOP256GN	Current Limiting Over Temperature Over Voltage	78 %	700 V	Surface Mount	-40 °C	150 °C	66 kHz	8-SMD (7 Leads) Gull Wing	SMD-8C	Flyback	34 W	Isolated

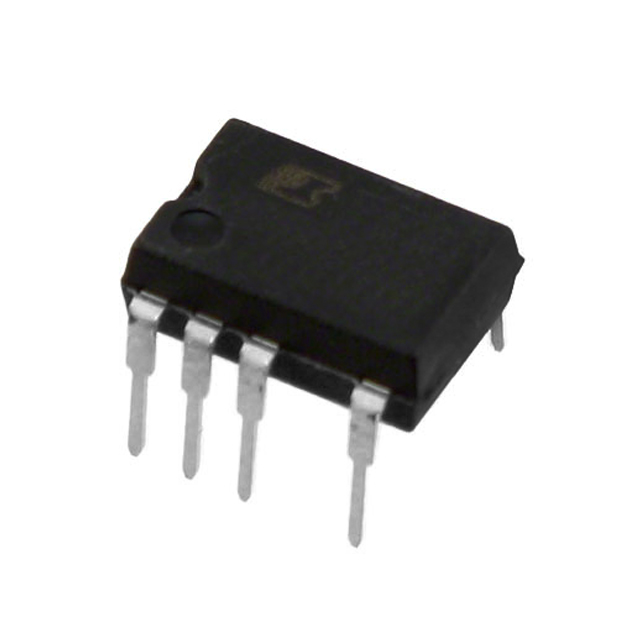

POWER INTEGRATIONS TOP256MG	Current Limiting Over Temperature Over Voltage	78 %	700 V	Through Hole	-40 °C	150 °C	66 kHz	10-SDIP 9 Leads	SDIP-10C	Flyback	34 W	Isolated	0.3 in	7.62 mm
POWER INTEGRATIONS TOP256LN	Current Limiting Over Temperature Over Voltage	78 %	700 V	Through Hole	-40 °C	150 °C	66 kHz 132 kHz	6 Leads 7-SSIP Exposed Pad Formed Leads	eSIP-7F	Flyback	88 W	Isolated

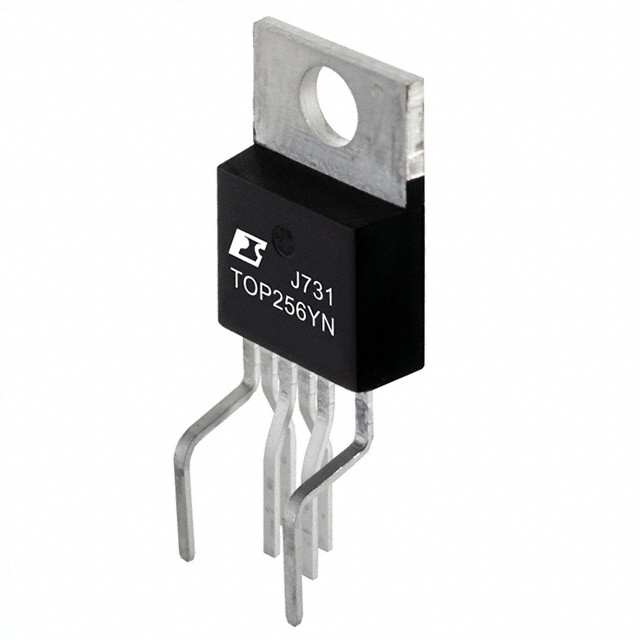

POWER INTEGRATIONS TOP256YN	Current Limiting Over Temperature Over Voltage	78 %	700 V	Through Hole	-40 °C	150 °C	66 kHz 132 kHz	TO-220-7 Formed Leads 6 Leads	TO-220-7C	Flyback	119 W	Isolated
POWER INTEGRATIONS TOP256PG	Current Limiting Over Temperature Over Voltage	78 %	700 V	Through Hole	-40 °C	150 °C	66 kHz	7 Leads 8-DIP	8-PDIP-C	Flyback	34 W	Isolated	0.3 in	7.62 mm

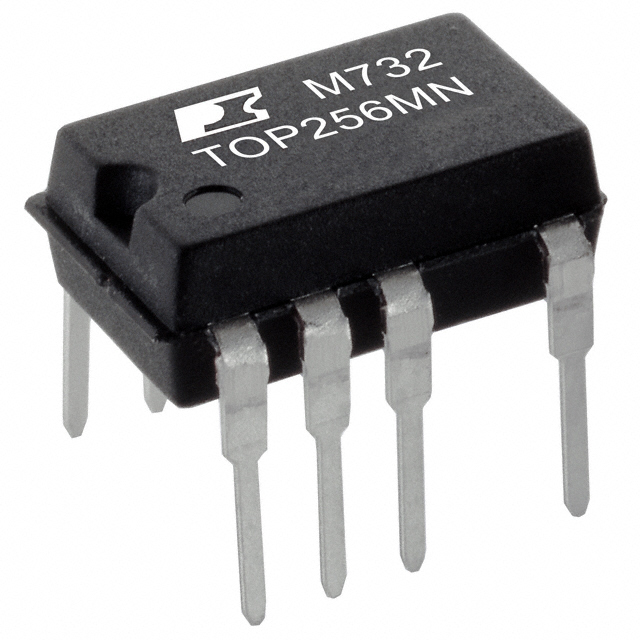

POWER INTEGRATIONS TOP256MN	Current Limiting Over Temperature Over Voltage	78 %	700 V	Through Hole	-40 °C	150 °C	66 kHz	10-SDIP 9 Leads	SDIP-10C	Flyback	34 W	Isolated	0.3 in	7.62 mm
