Fuse - ZCase Mega 32V M10 300A 480 pc
Fuse - ZCase Mega 32V M10 300A 480 pc
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Melting I²t | Breaking Capacity @ Rated Voltage | Fuse Type | Mounting Type | Voltage Rating - DC | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 125 °C | -40 C | 200 A | 235000 I²t | 2 kA | Board Mount (Cartridge Style Excluded) | Bolt Mount | 32 V | Module | |||||||

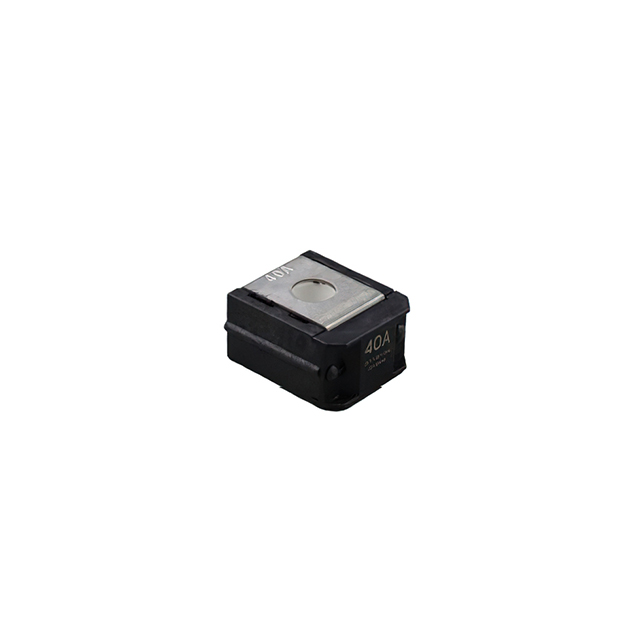

 LITTELFUSE | 125 °C | -40 C | 40 A | 2 kA | Board Mount (Cartridge Style Excluded) | Bolt Mount | 32 V | Module | 1.047 " | 16.1 mm | 0.634 in | 30.1 mm | 26.6 mm | 1.185 " | ||
 LITTELFUSE | 125 °C | -40 C | 80 A | 15500 | 2 kA | Board Mount (Cartridge Style Excluded) | Bolt Mount | 32 V | Module | 1.047 " | 16.1 mm | 0.634 in | 30.1 mm | 26.6 mm | 1.185 " | 0.000715 Ohms |
