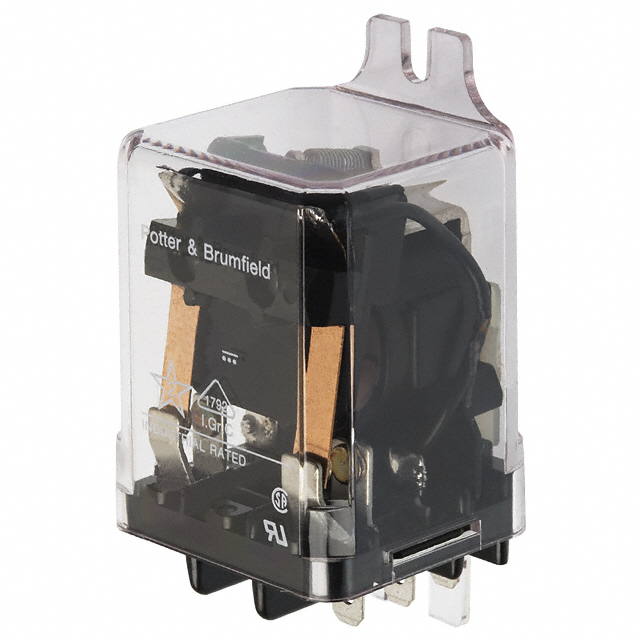

KUGP-7A Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPST 10A 240V
| Part | Coil Resistance | Switching Voltage [Max] | Load - Max Switching | Relay Type | Operate Time | Coil Type | Approval Agency | Coil Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Contact Material | Must Operate Voltage | Coil Current | Mounting Type | Termination Style | Contact Form | Coil Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 7.2 kOhms | 240 VAC | 2400 VA | General Purpose | 20 ms | Non Latching | CSA UR | Class B | -45 °C | 70 °C | 15 ms | Silver Cadmium Oxide (AgCdO) | 204 VAC | 12 mA | Chassis Mount | Quick Connect | DPST-NO (2 Form A) | 240 VAC/DC | 10 A |
TE Connectivity AMP Connectors | 1.7 kOhms | 240 VAC | 2400 VA | General Purpose | 20 ms | Non Latching | CSA UR | Class B | -45 °C | 70 °C | 15 ms | Silver Cadmium Oxide (AgCdO) | 102 VAC | 24 mA | Chassis Mount | Quick Connect | DPST-NO (2 Form A) | 120 VAC | 10 A |
