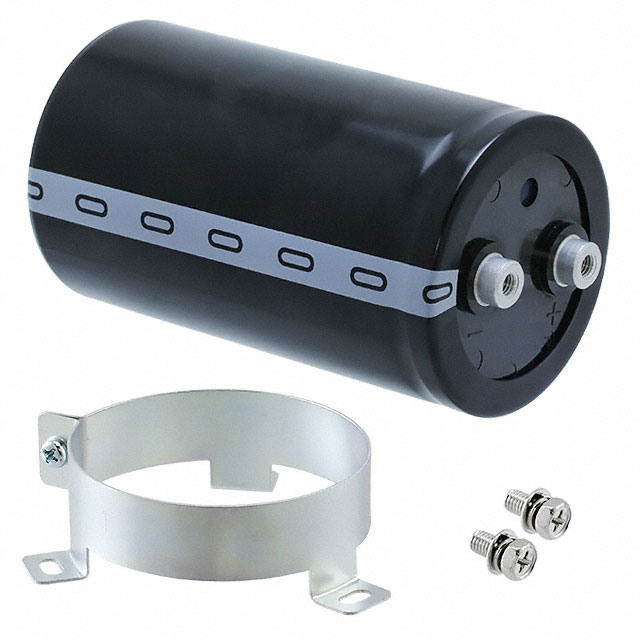

RHA Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 550V 10000UF 20% HIGH VOLTAGE

Part	Capacitance	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Lifetime @ Temp.	Mounting Type	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Package / Case	Polarization	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Height - Seated (Max)	Height - Seated (Max)
Chemi-Con ERHA551LGC103MGL0M	10000 µF	General Purpose	200 mm	7.874 in	20 %	5000 Hrs	Chassis Mount	29.4 A	85 °C	-25 °C	1.634 in	41.5 mm	Radial Can - Screw Terminals	Polar	41.16 A	100 mm	3.937 "	550 V
Chemi-Con ERHA651LGC122MDB0U	1.2 mF			4.488 in	20 %	5000 Hrs	Chassis Mount	7.2 A	85 °C	-25 °C	1.102 in	28 mm	Radial Can - Screw Terminals	Polar	10.08 A	63.5 mm	2.5 in	650 V	114 mm
Chemi-Con ERHA601LGC472MFF0M	4700 µF	General Purpose	5.906 in		20 %	5000 Hrs	Chassis Mount	16.6 A	85 °C	-25 °C	1.24 in	31.5 mm	Radial Can - Screw Terminals	Polar	23.24 A	89 mm	3.504 in	600 V		150 mm
