Citec TW Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

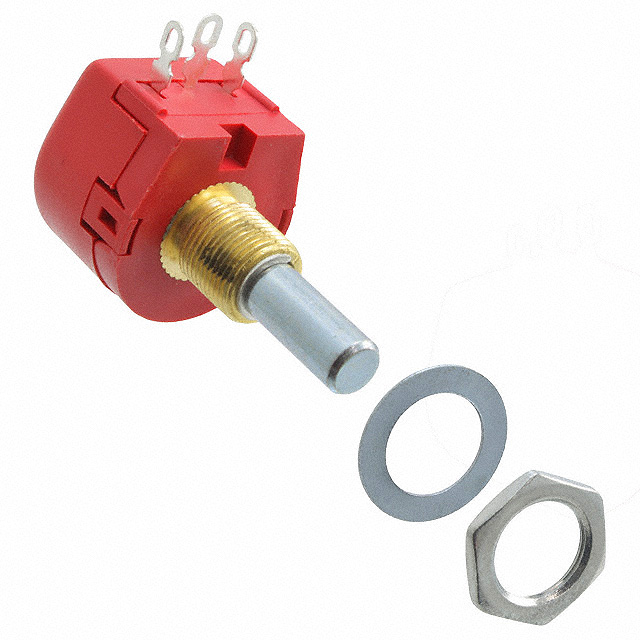

POT 25K OHM 1W WIREWOUND LINEAR
| Part | Size - Body [diameter] | Size - Body [diameter] | Rotation | Built in Switch | Number of Gangs | Actuator Length [x] | Actuator Length [x] | Mounting Type | Tolerance | Resistive Material | Temperature Coefficient | Adjustment Type | Power (Watts) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Bushing Thread | Bushing Thread | Taper | Number of Turns | Termination Style | Resistance (Ohms) [custom] | Actuator Type | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | 25 kOhms | Round | ||
TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | Round | 5 kOhms | ||
TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | 100 Ohms | Round | ||
TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | 250 Ohms | Round | ||
 TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | 50 Ohms | Round | ||
TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | 10 Ohms | Round | ||
TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | 2.5 kOhms | Round | ||
TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | 500 Ohms | Round | ||
 TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | Round | 1k | ||
TE Connectivity AMP Connectors | 22.6 mm | 0.89 " | 285 ° | None | 1 | 0.984 in | 25 mm | Panel Mount | 10 % | Wirewound | 100 ppm/°C | User Defined | 1 W | 6.35 mm | 0.25 in | M10 | 0.75 | Linear | 1 | Solder Lug | Round | 10k |
