A222Y20 Series
Manufacturer: Nicomatic
Beta
⌘K
FEM. 20POS STRAIGHT TRGH 1MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Material | Insulation Material | Contact Type | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Number of Rows [custom] | Contact Finish - Post | Insulation Color | Termination | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Current Rating (Amps) | Number of Positions | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Features | Fastening Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

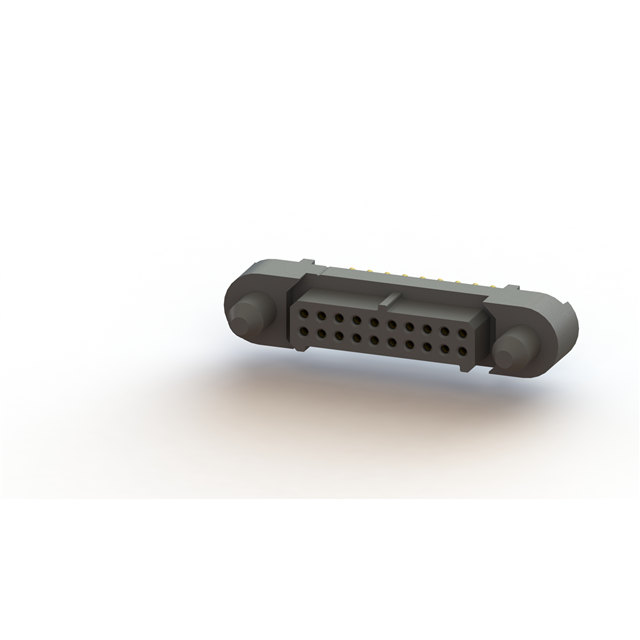

 Nicomatic | 0.15 µm | 5.9 µin | Circular | Copper Alloy | Liquid Crystal Polymer (LCP) | Female Socket | 4.4 mm | 0.173 in | 0.122 in | 3.1 mm | All | 2 | Gold | Black | Solder | UL94 V-0 | 1 mm | 0.039 in | Gold | 5.9 µin | 0.15 µm | 2.5 A | 20 | 600 VAC | 0.039 in | 1 mm | Guide Pin Mating Guide | Push-Pull | Through Hole | -65 ░C | 200 °C | Receptacle |

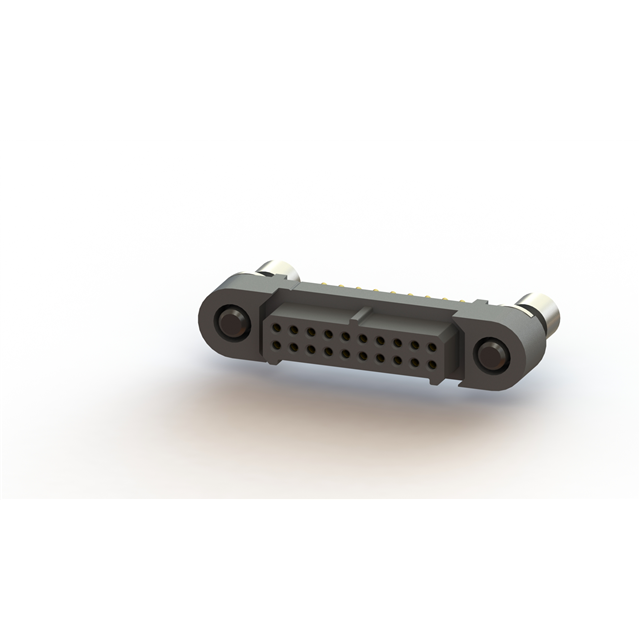

 Nicomatic | 0.15 µm | 5.9 µin | Circular | Copper Alloy | Liquid Crystal Polymer (LCP) | Female Socket | 4.4 mm | 0.173 in | 0.122 in | 3.1 mm | All | 2 | Gold | Black | Solder | UL94 V-0 | 1 mm | 0.039 in | Gold | 5.9 µin | 0.15 µm | 2.5 A | 20 | 600 VAC | 0.039 in | 1 mm | Jackscrews Mating Flange Mounting Flange Polarizing Key | Through Hole | -65 ░C | 200 °C | Receptacle |
