9130-1573 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

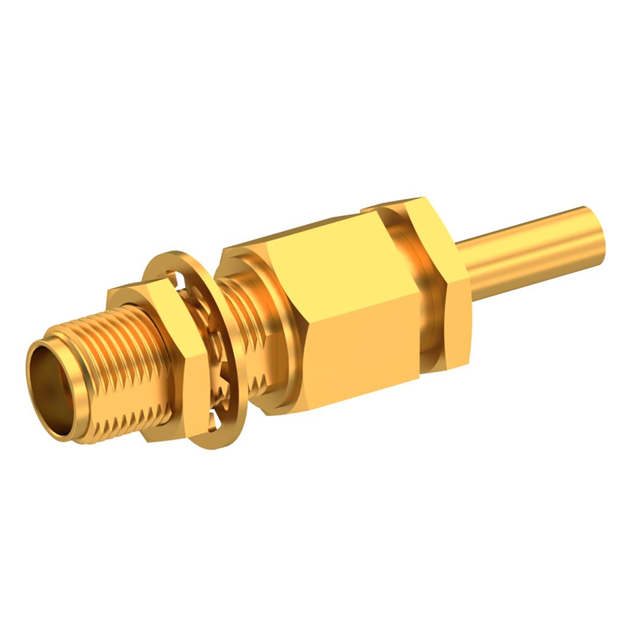

SMA / STRAIGHT JACK FEMALE CRIMP
| Part | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Dielectric Material | Body Finish | Voltage Rating | Mating Cycles | Center Contact Material | Connector Type | Connector Style | Fastening Type | Contact Termination | Impedance | Housing Color | Number of Ports | Frequency - Max [Max] | Mounting Type | Cable Group | Shield Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Stainless Steel | -65 ░C | 165 °C | 0.44 dB | Polytetrafluoroethylene (PTFE) | Gold | 250 V | 500 | Beryllium Copper | Female Socket Jack | SMA | Threaded | Crimp | 50 Ohms | Gold | 1 | 18 GHz | Panel Mount | RG-316DS | Crimp | Bulkhead - Front Side Nut |
