RACM40-48 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 40 W, 80V AC TO 264V AC, FIXED

Part	Efficiency	Type	Current - Output 1	Mounting Type	Number of Outputs	Approval Agency	Power (Watts)	Applications	Features	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Line Regulation	Load Regulation	Package / Case	Current - Output (Max) [Max]
Recom Power RACM40-48SK/OF-CTN	90 %	Open Frame	833 mA	Chassis Mount	1	CE CSA cURus	40 W	Medical	Standby Output Universal Input	80 VAC 120 VDC	264 VAC 370 VDC	48 V	60601-1	-40 °C	85 °C	1.6 in	40.6 mm	3.08 in	25.5 mm	1 in	78.3 mm	4000 V
Recom Power RACM40-48SK/OF/PCB-T	90 %	Open Frame		Through Hole	1	CE CSA cURus	40 W	Medical	Standby Output Universal Input	80 VAC 120 VDC	264 VAC 370 VDC	48 V		-40 °C	85 °C	1.6 in	40.6 mm	3.08 in	28.9 mm	1.14 in	78.3 mm		0.05 %	0.5 %	7-DIP Module 6 Leads	833 mA

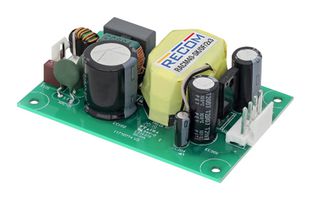

Recom Power RACM40-48SK/OF/2X3	90 %	Open Frame	833 mA	Chassis Mount	1	CE CSA cURus	40 W	Medical	Standby Output Universal Input	80 VAC 120 VDC	264 VAC 370 VDC	48 V	60601-1	-40 °C	85 °C	2.09 "	53 mm	3.08 in	25.5 mm	1 in	78.3 mm	4000 V
